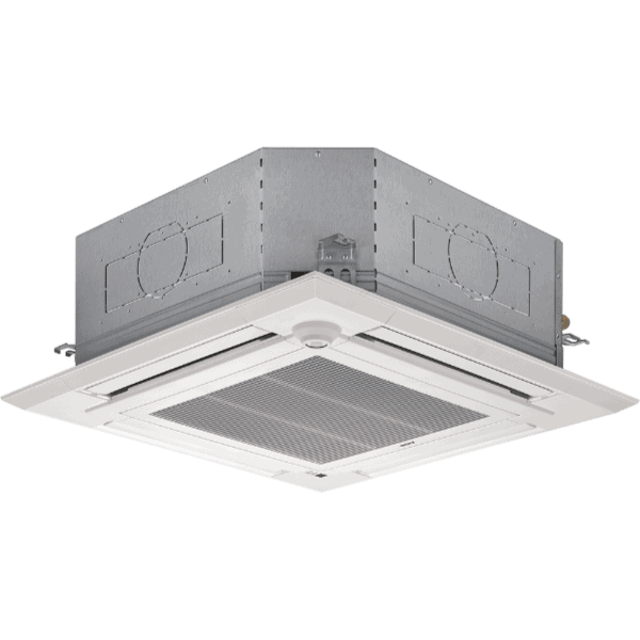

Mitsubishi Indoor Unit PLA-RP6AA
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Indoor Unit Model PLA-RP6AA
Integrate maintenance plans directly into your work orders in MaintainX.
Panel Disassemble
Removing the panel
Remove the air intake grille
Corner panel
Remove the corner screw
Slide the corner panel to the direction of the arrow 3, and remove the corner panel
Panel
Disconnect the connector that connects with the unit
Remove the 2 screws from the panel and loosen another 2 screws, which fix to the oval holes, have different diameters
Rotate the panel a little to remove the panel
Drain Pump and Drain Sensor Disassemble
Drain Pump and Drain Sensor Removal Procedure
Remove the panel
Upload a photo of the removed panel
Remove the fan guard
Upload a photo of the removed fan guard
Remove the bell mouth
Upload a photo of the removed bell mouth
Remove the electrical box
Upload a photo of the removed electrical box
Fan Guard Disassemble
Open the air intake grille
Remove the 3 screws of fan guard
Room Temperature Thermistor Disassemble
Removing the room temperature thermistor
Remove the fan guard
Upload a photo of the removed fan guard
Remove the screw in the room temperature thermistor holder to remove the holder and the room temperature thermistor
Remove the 1 screw from the bell mouth, and unscrew the other 2 screws (fix to the oval hole which has a different diameter) to remove the bell mouth
Remove the holder claw, and remove the room temperature thermistor and holder
Disconnect the connector (red) from the indoor control board
Sign off on the disassembly of the room temperature thermistor
Fan Motor Disassemble
Remove the fan guard
Upload a photo of the removed fan guard
Remove the bell mouth
Upload a photo of the removed bell mouth
Remove the electrical box
Upload a photo of the removed electrical box
Remove the turbo fan nut
Pull out the turbo fan
Disconnect the connector of the fan motor lead wire
Parts for Mitsubishi Indoor Unit PLA-RP6AA
Access the parts list for your equipment in MaintainX.
Air Outlet Grille, Wireless
S70 E10 003
Vane Assy, Wireless
S70 E01 002
Corner Panel, Wireless
S70 E01 638
Corner Panel, Wireless
S70 E00 638
L.L. Filter-A, Wireless
S70 E00 500
Air Outlet Grille, Wireless
S70 E10 003
Vane Assy, Wireless
S70 E01 002
Corner Panel, Wireless
S70 E01 638
Corner Panel, Wireless
S70 E00 638
L.L. Filter-A, Wireless
S70 E00 500
Air Outlet Grille, Wireless
S70 E10 003
Vane Assy, Wireless
S70 E01 002
Corner Panel, Wireless
S70 E01 638
Corner Panel, Wireless
S70 E00 638
L.L. Filter-A, Wireless
S70 E00 500
