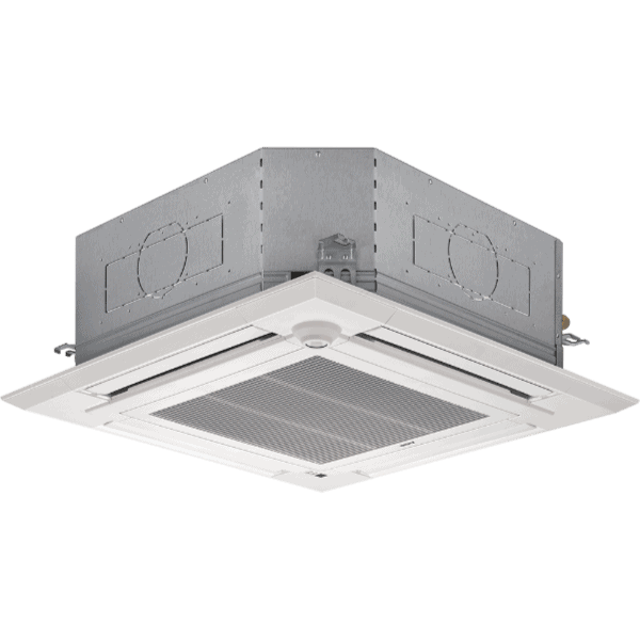

Mitsubishi Indoor Unit PLA-RP5AA
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Indoor Unit PLA-RP5AA
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Indoor Unit PLA-RP5AA
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Indoor Unit Model PLA-RP5AA
Integrate maintenance plans directly into your work orders in MaintainX.
Temperature Thermistor and Condenser Evaporator Temperature Thermistor Disassemble
Warning: This procedure requires trained personnel with PPE!
Upload a photo of the fan guard before removal
Fan guard removed?
Upload a photo of the bell mouth before removal
Bell mouth removed?
Upload a photo of the electrical box before removal
Electrical box removed?
Turbo fan removed?
Screw of the service panel removed?
Fan Motor Disassemble
Remove the fan guard
Upload a photo of the removed fan guard
Remove the bell mouth
Upload a photo of the removed bell mouth
Remove the electrical box
Upload a photo of the removed electrical box
Remove the turbo fan nut
Pull out the turbo fan
Disconnect the connector of the fan motor lead wire
Air Intake Grille Disassemble
Removing the air intake grille
Slide the knob of air intake grille toward the arrow 1 to open the air intake grille
Remove drop prevention hook from the panel
Slide the shaft in the hinge to the direction of the arrow 2 and remove the air intake grille
Drain Pan Disassemble
Remove the panel
Upload a photo of the removed panel
Remove the drain plug and drain the remaining water in the drain pan
Remove the corner cover
Number of screws removed from the corner cover
Remove the bell mouth
Upload a photo of the removed bell mouth
Remove the electrical box
Upload a photo of the removed electrical box
Electrical Box Disassemble
Upload photo 1 of the fan guard before removal
Fan guard removed
Lead wire of the vane motor removed from the clamp and white connector (10P) disconnected
Room temperature thermistor with the holder removed
Upload photo 2 of the bell mouth before removal
Bell mouth removed
Disconnect the relay connector in the electrical box
3 screws of the electrical box removed and the other 2 screws loosened to remove the box
Check the electrical parts in the electrical box
Parts for Mitsubishi Indoor Unit PLA-RP5AA
Access the parts list for your equipment in MaintainX.
Air Outlet Grille, Wireless
S70 E10 003
Vane Assy, Wireless
S70 E01 002
Corner Panel, Wireless
S70 E01 638
Corner Panel, Wireless
S70 E00 638
L.L. Filter-A, Wireless
S70 E00 500
Air Outlet Grille, Wireless
S70 E10 003
Vane Assy, Wireless
S70 E01 002
Corner Panel, Wireless
S70 E01 638
Corner Panel, Wireless
S70 E00 638
L.L. Filter-A, Wireless
S70 E00 500
Air Outlet Grille, Wireless
S70 E10 003
Vane Assy, Wireless
S70 E01 002
Corner Panel, Wireless
S70 E01 638
Corner Panel, Wireless
S70 E00 638
L.L. Filter-A, Wireless
S70 E00 500
