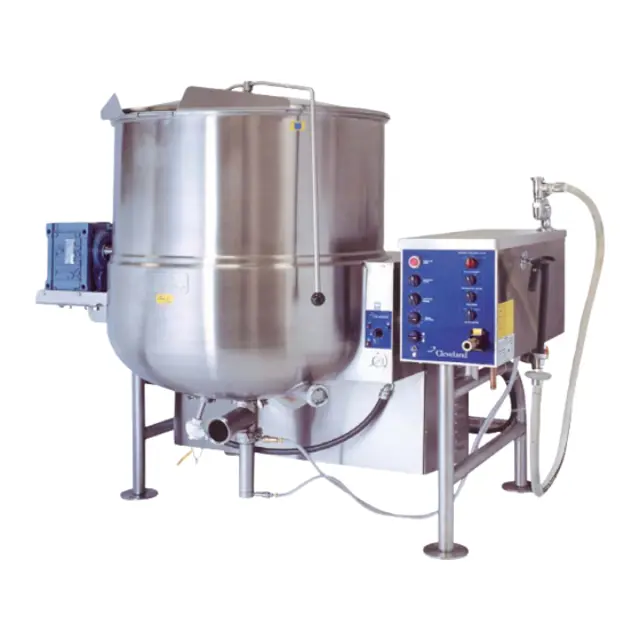

Cleveland Gas Mixing Kettle Horizontal Agitator HA-MKGL-80-CC-T

Lubricate the following parts every three months to insure smooth operation and reduce wear.

TRUNNION HOUSING, WORM SCREW AND TILT GEAR

These parts are accessed through the top cover of the console.

Apply grease to gear teeth. Check for excessive play and adjust with adjusting screw located on top of cross bar.

On the left hand side of the kettle there are two grease nipples on the top back portion of the trunnion housing.; On the right hand side of the kettle you must remove the console cover to access the two grease nipples.

CAUTION SURFACES MAY BE EXTREMELY HOT!

Cooking equipment must be cleaned regularty to maintain its fast, efficient cooking performance and to ensure its continued safe, reliable operation. The best time to clean is shortly after each use (allow unit to cool to a sate temperature).

Do not use detergents or cleansers that are chloride based or contain quaternary salt.

Do not use a metal bristle brush or scraper.

Steel wool should never be used for cleaning the stainless steel.

Unit should never be cleaned with a high pressure spray hose.

Do not leave water sitting in unit when not in use.

Disassemble valve as per daily cleaning instructions

Holding lower valve body (6), unscrew valve bottom (7)

Pull lower valve body out from cylinder body

Coat cylinder body and \O\" rings with cooking oil or food-safe grease"

Warning: This is a two-person job. Ensure to wear appropriate PPE.

Agitator rotated until pull pin is on top side

Coupling slid towards kettle wall

Agitator cleaned in a sink with warm water and mild detergent solution

Agitator rinsed with fresh water

Check quad ring and replace if required. Refer to QUAD RING REPLACEMENT PROCEDURE.

QUAD RING REPLACEMENT PROCEDURE

(Used prior to June 1999, after June 1999 see SEAL RETAINER PLATE REPLACEMENT PROCEDURE.)

1. Remove agitator as per cleaning instructions.

2. Remove hole cap, retaining bolt and retaining washer.

3. Snap retaining ring out from seating inside motor.

5. Slide seal retainer plate away from kettle.

6. Slide shaft away from kettle body to allow clearance for removing quad ring.
