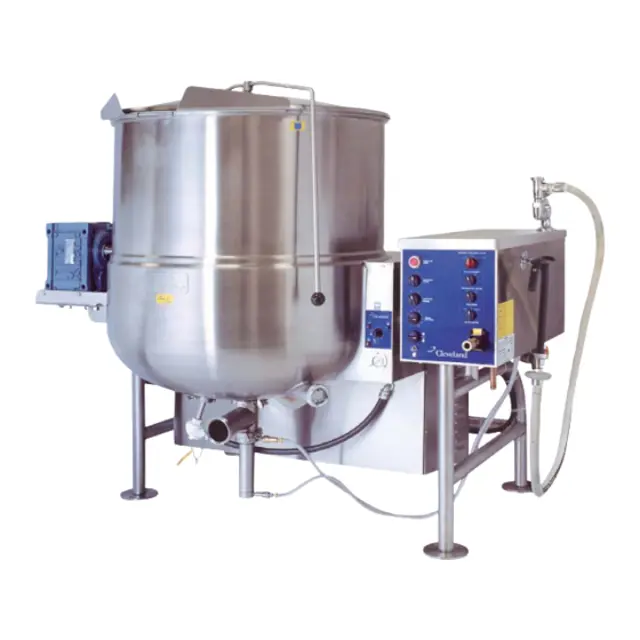

Cleveland Gas Mixing Kettle Horizontal Agitator HA-MKGL-100

Check quad ring and replace if required. Refer to QUAD RING REPLACEMENT PROCEDURE.

QUAD RING REPLACEMENT PROCEDURE

(Used prior to June 1999, after June 1999 see SEAL RETAINER PLATE REPLACEMENT PROCEDURE.)

1. Remove agitator as per cleaning instructions.

2. Remove hole cap, retaining bolt and retaining washer.

3. Snap retaining ring out from seating inside motor.

5. Slide seal retainer plate away from kettle.

6. Slide shaft away from kettle body to allow clearance for removing quad ring.

SEAL RETAINER PLATE (Replaces QUAD RING after June 1999.)

Apply food safe grease to grease nipples until you see clean grease inside the kettle

Sign off on the daily seal retainer plate cleaning

Grease trunnion housings in gear box and on outboard bearings.

Test pressure relief valve. Refer to PRESSURE RELIEF VALVE TESTING PROCEDURE.

PRESSURE RELIEF VALVE PERIODIC TESTING

Most insurance agencies require periodic testing of pressure relief valves used on pressure vessels.; This procedure will allow you to safely and quickly test your kettle's pressure relief valve. We recommend this test be performed twice a year.

DANGER: PRESSURE RELIEF VALVE WILL EXHAUST HIGH TEMPERATURE STEAM. CONTACT WITH SKIN COULD RESULT IN SERIOUS BURNS. KEEP FACE, HANDS AND BODY CLEAR OF DISCHARGE.

DANGER: WORKING ON MACHINES WITH POWER COULD RESULT IN SEVERE ELECTRICAL SHOCK.

NOTE: The following instruction is intended for use by qualified service personnel.

WARNING: Kettle surface will be hot and steam will be released during testing. Take necessary precautions including the use of gloves and eye protection to prevent personal injury.

To remove and clean scraper blades:

Insert tool as shown in Fig. 2.

Pull up on spring arm until arm clears groove in Pin B.

Spring is now disengaged, gently release spring to remove scraper blade.

Slide scraper blade and spring onto Pin A as shown in Fig. 1.

Using tool, engage spring arm into groove on Pin B.

Warning: This is a two-person job. Ensure to wear appropriate PPE.

Agitator rotated until pull pin is on top side

Coupling slid towards kettle wall

Agitator cleaned in a sink with warm water and mild detergent solution

Agitator rinsed with fresh water
