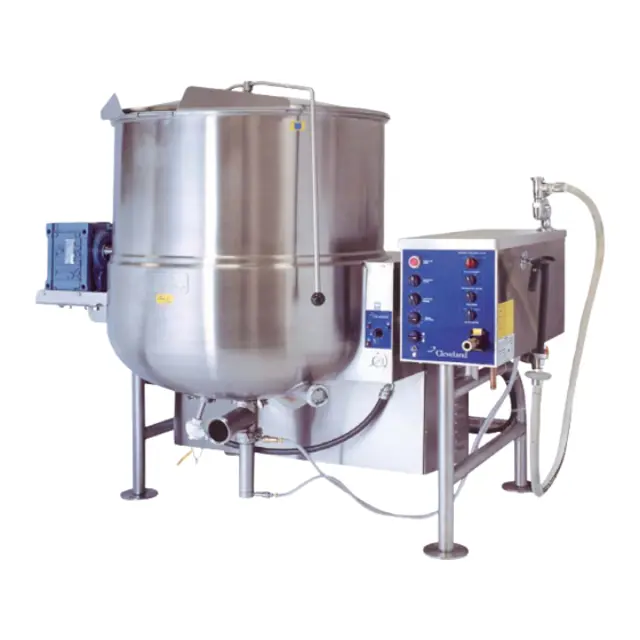

Cleveland Gas Mixing Kettle Horizontal Agitator HA-MKGL-100-CC

Bushing removed by turning 1/4 turn and pulling away from the kettle wall

Bushing and bushing mounting area cleaned, rinsed and sanitized

Metal surfaces lubricated with food safe grease

Bushing installed by locating retaining pin and sliding bushing on

Bushing rotated to lock into position

Sign off on the agitator bushing cleaning

To remove and clean scraper blades:

Insert tool that is provided as shown in Fig. 2.

Pull up on spring arm until arm clears groove in Pin B.

Spring is now disengaged, gently release spring to remove scraper blade.

Slide scraper blade and spring onto Pin A as shown in Fig. 1.

Remove agitator as per cleaning instructions

Remove bushing by turning 1/4 turn and pulling away from the kettle wall

Lubricate metal surfaces with food safe grease

Install new bushing by locating retaining pin and sliding bushing on

Sign off on the bushing replacement

Warning: Ensure the machine is turned off and unplugged before starting the cleaning process.

Shaft seal retainer plate and quad ring slid away from kettle body

Quad ring, shaft, and seal retainer plate cleaned with clean cloth

Light coat of food safe grease applied to both sides of the quad ring

Quad ring slid back into original position without twisting

Retainer plate slid back toward kettle, replacing retaining knobs

Retaining knobs tightened with hand pressure only

Check quad ring and replace if required. Refer to QUAD RING REPLACEMENT PROCEDURE.

QUAD RING REPLACEMENT PROCEDURE

(Used prior to June 1999, after June 1999 see SEAL RETAINER PLATE REPLACEMENT PROCEDURE.)

1. Remove agitator as per cleaning instructions.

2. Remove hole cap, retaining bolt and retaining washer.

3. Snap retaining ring out from seating inside motor.

5. Slide seal retainer plate away from kettle.

6. Slide shaft away from kettle body to allow clearance for removing quad ring.
