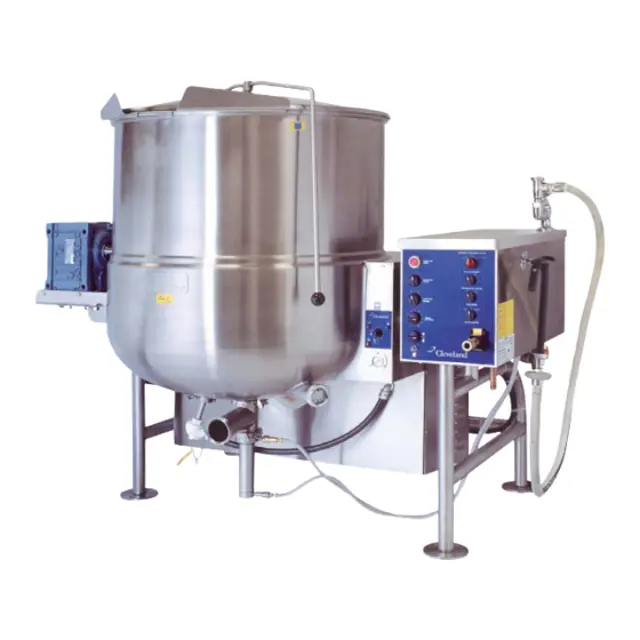

Cleveland Gas Mixing Kettle Horizontal Agitator HA-MKGL-80-T

SEAL RETAINER PLATE (Replaces QUAD RING after June 1999.)

Apply food safe grease to grease nipples until you see clean grease inside the kettle

Sign off on the daily seal retainer plate cleaning

Grease trunnion housings in gear box and on outboard bearings.

Test pressure relief valve. Refer to PRESSURE RELIEF VALVE TESTING PROCEDURE.

PRESSURE RELIEF VALVE PERIODIC TESTING

Most insurance agencies require periodic testing of pressure relief valves used on pressure vessels.; This procedure will allow you to safely and quickly test your kettle's pressure relief valve. We recommend this test be performed twice a year.

DANGER: PRESSURE RELIEF VALVE WILL EXHAUST HIGH TEMPERATURE STEAM. CONTACT WITH SKIN COULD RESULT IN SERIOUS BURNS. KEEP FACE, HANDS AND BODY CLEAR OF DISCHARGE.

DANGER: WORKING ON MACHINES WITH POWER COULD RESULT IN SEVERE ELECTRICAL SHOCK.

NOTE: The following instruction is intended for use by qualified service personnel.

WARNING: Kettle surface will be hot and steam will be released during testing. Take necessary precautions including the use of gloves and eye protection to prevent personal injury.

QUAD RING (Used prior to June 1999)

Slide shaft seal retainer plate and quad ring away from kettle body

Clean quad ring, shaft, and seal retainer plate with clean cloth

Apply light coat of food safe grease to both sides of the quad ring

Slide quad ring back into original position, making sure it does not twist

Slide retainer plate back toward kettle, replacing retaining knobs

Tighten with hand pressure only

• Inspect all switches for damage. Replace rubber boots or switches as required.

• Check that the automatic dump valve works fully and smoothly and no air leaks are evident.

• Check that the 3 way regulator shuts off the incoming air and completely vacates the air from the air hose to the metering filling station.

• Tilt kettle and check for smooth operation in both directions.

• Inspect gear and worm assembly in gear box for play - tighten Allen screws if required.

• Inspect gasket material on covers for integrity.

• Check spring assist covers for tightness to handle and insure spring is holding cover up - adjust if required. Refer to HINGE ADJUSTMENT INSTRUCTIONS.

Warning: This is a two-person job. Ensure to wear appropriate PPE.

Agitator rotated until pull pin is on top side

Coupling slid towards kettle wall

Agitator cleaned in a sink with warm water and mild detergent solution

Agitator rinsed with fresh water
