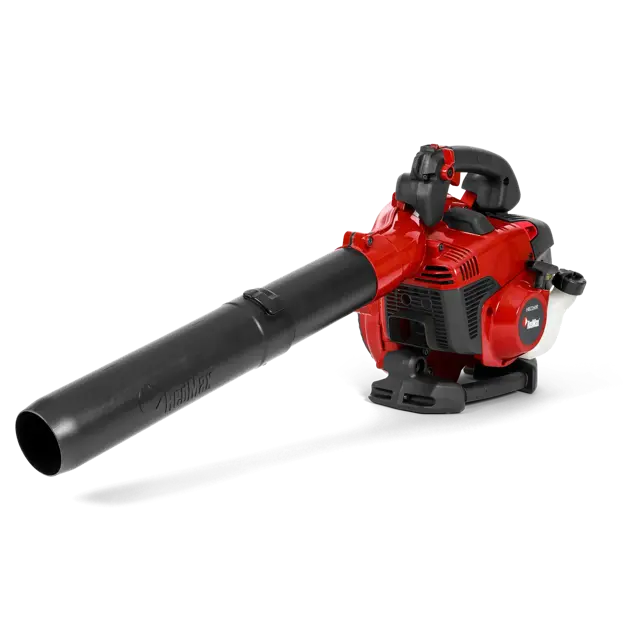

RedMax Leaf Blower HBZ260R

Create an account to install this asset package.

Maintenance Plans for RedMax Leaf Blower Model HBZ260R

Integrate maintenance plans directly into your work orders in MaintainX.

1 Monthly Blower Maintenance

Fuel tank cleaned?

All cables and connections examined?

Spark arrestor screen on the muffler examined and cleaned?

Was it necessary to replace the spark plug?

Sign off on the monthly blower maintenance

Run this procedure

1 Daily Blower Maintenance

Clean the external surfaces.

Make sure that the throttle control operates correctly.

Examine the engine, the fuel tank and the fuel lines for leaks. Examine the fuel filter for contamination.; Replace the fuel filter if it is necessary.

Clean the air filter. Replace the air filter if it is necessary.

Tighten nuts and screws.

Examine the air intake and make sure that it is not blocked.

Make sure that the start/stop switch operates correctly. Refer to To do a check of the start/stop switch on page 5.

To do a check of the start/stop switch

1. Use the start/stop switch to stop the engine.

Run this procedure

Air Filter Cleaning

CAUTION: Do not use a product without an air filter or with a damaged air filter. Dust in the air can cause damage to the engine.

Push the choke control to the closed choke position.

Upload a photo of the removed air filter cover (A).

Upload a photo of the removed air filter (B) from the filter frame.

Clean the air filter (B) with warm water and soap.

Note: An air filter that has been used for a long time cannot be fully cleaned. Replace the air filter regularly and always replace a defective air filter.

Clean the inner surface of the air filter cover (A) with a brush.

Is the felt filter (C) dirty?

Remove and replace the felt filter (C) if it is dirty.

Run this procedure

Idle Speed Adjustment

Air filter is clean and the air filter cover is attached

Product overview on page 2 shows the location of the idle speed screw

Idle speed adjusted with the idle speed screw

Sign off on the idle speed adjustment

Run this procedure

Cooling System Cleaning

Warning: Ensure the engine is stopped before starting the procedure

Cooling system is not dirty or blocked

Upload a photo of the air intake screen after cleaning

Upload a photo of the cooling fins after cleaning

CAUTION: A dirty or blocked cooling system can increase the temperature of the engine and cause damage to the product. A clogged air intake screen decreases the blow force.

Cooling system examined for damages

Are the parts attached correctly to the product?

Sign off on the cooling system cleaning

Run this procedure
