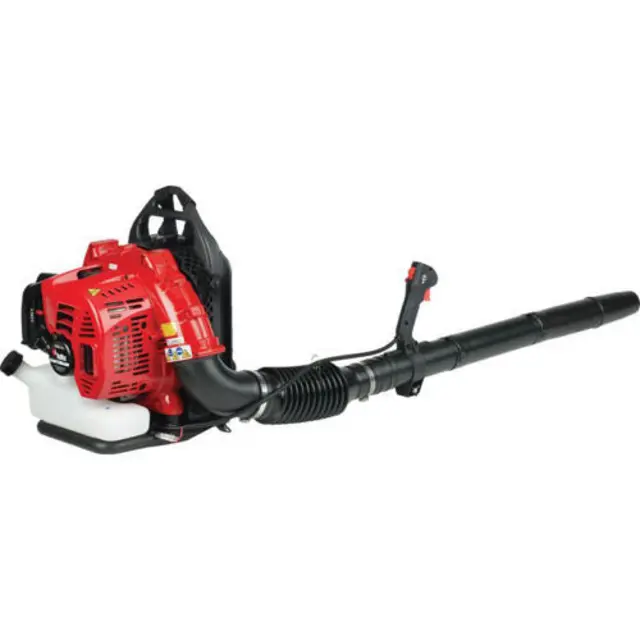

RedMax Backpack Blower EBZ7500RH

Create an account to install this asset package.

Maintenance Plans for RedMax Backpack Blower Model EBZ7500RH

Integrate maintenance plans directly into your work orders in MaintainX.

1 Weekly Air Filter Cleaning

CLEANING AIR FILTER

Unscrew 2 knob bolts and remove the air cleaner cover. Then remove a prefilter mounted inside the air cleaner cover.

Wash the prefilter in fresh, non flammable cleaning solution (ex. warm soapy water) and then dry.

Exchange the paper filter element with new one in case it has been contaminated.

WARNING

This prefilter is dry type.

Never wash the prefilter in oleaginous cleaning solution.

Do not clean a paper filter by striking it.

Sign off on the air filter cleaning

Run this procedure

100 Hourly Blower Cylinder Exhaust Port Cleaning

WARNING

Make sure that the engine has stopped and is cool before performing any service to the blower. Contact with rotating blower fan or hot muffler may result in a personal injury.

System/Component:Procedure

Cylinder Exhaust Port:Inspect/Clean

■ PROCEDURES TO BE PERFORMED AFTER EVERY 100 HOURS OF USE

1. Remove the muffler, insert a screwdriver into the vent(See F22), and wipe away any carbon buildup. Wipe away any carbon buildup on the muffler exhaust vent and cylinder exhaust port at the same time.

2. Tighten all screws, bolts, and fittings.;

Run this procedure

Blower Ignition Coil Air Gap Inspection

WARNING: Make sure that the engine has stopped and is cool before performing any service to the blower. Contact with rotating blower fan or hot muffler may result in a personal injury.

IGNITION COIL AIR GAP INSPECTION

If the gap is out of standard or when installing the coil or rotor, adjust the air gap between the ignition coil and the iron core of the rotor.

Air Gap: 0.30mm (0.3 ~ 0.4mm) 0.012\ (0.012 ~ 0.016\") See F24."

(1) Rotor (2) Ignition coil

Is the air gap within the standard range?

Enter the measured air gap

Sign off on the inspection

Run this procedure

1 Daily Blower Maintenance

WARNING

Make sure that the engine has stopped and is cool before performing any service to the blower. Contact with rotating blower fan or hot muffler may result in a personal injury.

Daily Maintenance

System/Component:Procedure

Fuel Leaks:Inspect/Replace

Fuel Filter:Inspect/Replace

Fuel Line:Inspect/Clean

Muffler:Inspect/Clean

Cooling System:Inspect/Clean

Run this procedure

25 Hourly Blower Maintenance

WARNING

Make sure that the engine has stopped and is cool before performing any service to the blower. Contact with rotating blower fan or hot muffler may result in a personal injury.

System/Component:Procedure

Fuel Filter:Inspect/Replace

Spark Plug:Inspect/Clean

■ FUEL FILTER

• A clogged fuel filter may cause poor acceleration of the engine. Check periodically to see if the filter is clogged with dirt. The filter can be taken out of the fueling port using a small wire hook. Disconnect the filter assembly from the fuel pipe and unhook the retainer to disassemble it.; Clean the components with gasoline. See F19.

(1) Screen

(2) Element

Run this procedure
