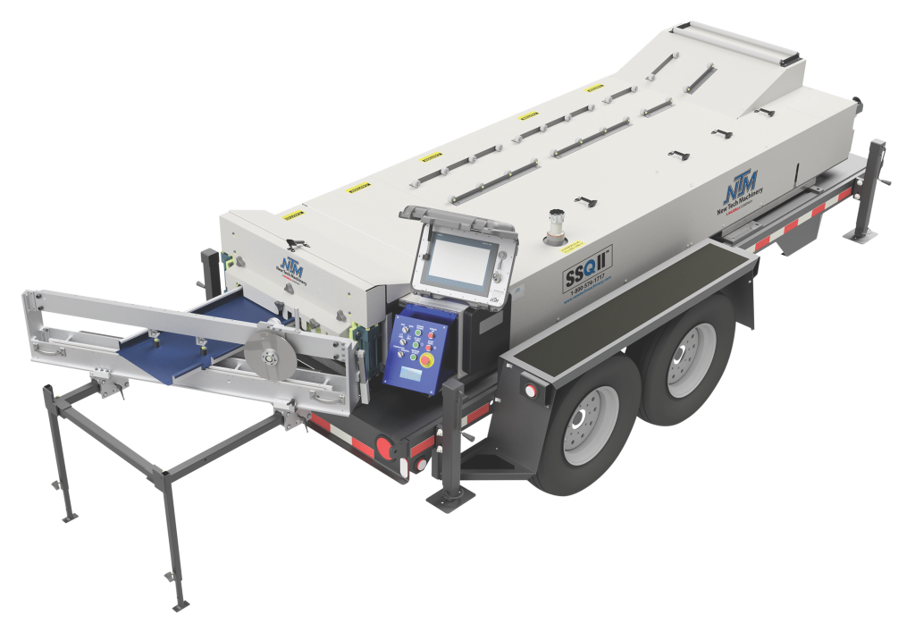

New Tech Machinery Roof Panel Machine SSQII

Warning: Always keep covers on during operation and storage

Visual inspection for foreign objects debris or anything unusual

Is Entry Guide Carriage clean and lubricated?

Are Bead Roller Carriage Shafts clean and lubricated?

Warning: Ensure the machine is powered off before starting the procedure

Is the machine's Motor Start function operational?

If Motor Start is operational, the fuse is not blown and does not need replacement

To replace the fuse, follow the steps below

Remove all 4 cover screws and open the front panel of the Control Box

Locate the automotive style in-line fuse near the bottom right hand corner

If the fuse is bad, replace with a new fuse

Warning: Ensure the machine is turned off and cooled down before starting the procedure

Check if the red Replacement Indicator sticks up

If the red Replacement Indicator does not stick up, stop the procedure and report

Upload a photo of the Left Side Covers after removal

Locate the Drain Hose coiled up under the tank near the manifold

Upload a photo of the Filler Cap after removal

Upload a photo of the Drain Hose hanging over the side of the machine and trailer

Place a container under the hose to catch the old fluid

Open the Drain Valve and drain the fluid into the container

The hydraulic system in the machine is very durable and reliable. The system must be properly maintained to ensure trouble free operation and longevity. The factory has installed a 32 weight AW hydraulic fluid. Because this equipment is used primarily outdoors and exposed to the elements, it is recommended that the oil be changed annually. Hydraulic oil will degrade if it remains stagnate in the system for long periods of time.

The hydraulic fluid should be changed at least once a year. More frequently if the machine is constantly in operation in a dusty environment or if the fluid becomes contaminated. To change the fluid and filter:

1. Remove the Left Side Covers and set aside.

2. Locate the Drain Hose coiled up under the tank near the manifold.

4. Uncoil Drain Hose and hang over the side of the machine and trailer.

5. Place a container under the hose to catch the old fluid.

6. Open the Drain Valve and drain the fluid into the container. Discard of Properly.

Electric motor machines have an additional 10-amp time delay fuse protecting the logic circuit of the Contactor Box. This fuse holder is mounted in the side or top cover of the contactor box located next to the electric motor. Access can be gained by removing the cover of the Quick Change Power Pack. This is a panel mounted, spring loaded fuse holder.

To replace this fuse: Push in on the cap and turn counterclockwise to release fuse.

Check fuse with a continuity tester.

If the fuse is bad replace with a new fuse
