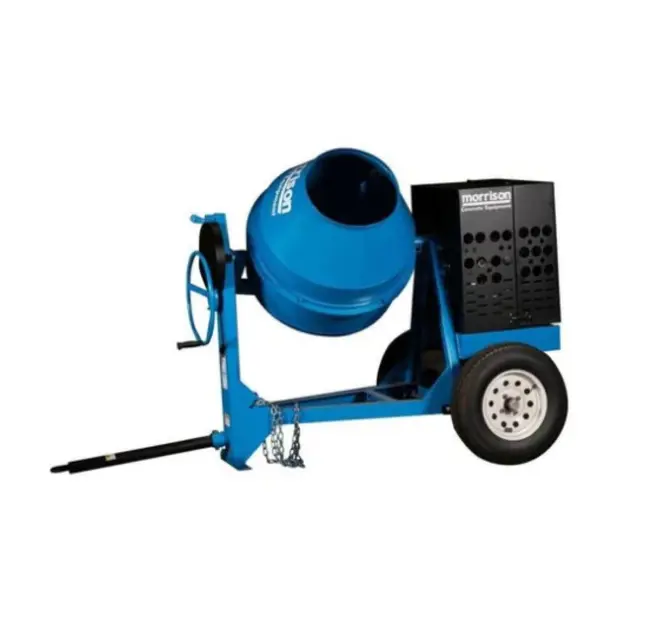

Bartell Concrete Mixer MC95PH240

Create an account to install this asset package.

Maintenance Plans for Bartell Concrete Mixer Model MC95PH240

Integrate maintenance plans directly into your work orders in MaintainX.

6 Monthly / 100 Hourly Fuel Tank and Filter Cleaning

• After servicing the unit, restore and fasten all guards, shields, and covers to their original positions.

• Never drain oil into the ground, into open streams, or down sewage drains.

Fuel Tank + Filter Clean Every 6 months or 100 Hrs.

Fuel Supply - Engines on Morrison Mixer equipment require an automotive grade of clean, fresh, unleaded or regular gasoline. All mixers come without gasoline and oil.

Fuel Filter - Check to ensure element is in good condition... Replace if it is clogged or damaged.;

Run this procedure

2 Yearly Fuel Tube Check

After servicing the unit, restore and fasten all guards, shields, and covers to their original positions.

Never drain oil into the ground, into open streams, or down sewage drains.

Check fuel tube

Fuel tube replaced if necessary?

Sign off on the fuel tube check

Run this procedure

1 Daily Drum Washing

• After servicing the unit, restore and fasten all guards, shields, and covers to their original positions.

DRUM

1. Wash the drum after every day’s usage.

2. Pull the locking pin and tip the drum forward to drain water excess.

3. Return drum to towing position and secure with locking pin before moving mixer.;

Run this procedure

1 Daily Fittings Lubrication

Safety Precautions

Never service or lubricate the unit engine while running.

After servicing the unit, restore and fasten all guards, shields, and covers to their original positions.

Never drain oil into the ground, into open streams, or down sewage drains.

LUBRICATION

Grease all fittings daily. All mixers have 6 grease fittings, 4 pillow blocks and 2 drum trunnions. Two of the fittings are located at each end of the mixer drum on the top of pillow blocks and trunnions. The two remaining grease fittings are located under the engine shroud on the top of the intermediate shaft pillow blocks.

Did you grease all fittings?

Sign off on the daily fittings lubrication

Run this procedure

6 Weekly / 50 Hourly Concrete Mixer Maintenance

• After servicing the unit, restore and fasten all guards, shields, and covers to their original positions.

• Never drain oil into the ground, into open streams, or down sewage drains.

General Inspection:

Guards: Check

Warning Stickers: Check

Test Run: Check - Operation

Engine:

Engine Oil: Check level. Oil Level - Check the oil level in the engine. All mixerscome without oil running an engine without lubrication may damage the engine.

Engine Oil: Change

Run this procedure
