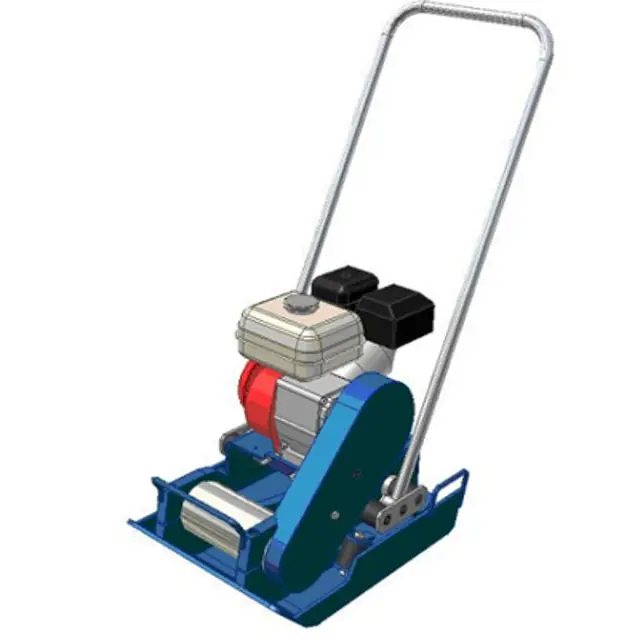

Bartell Vibratory Plate Compactor B1824-L

Create an account to install this asset package.

Maintenance Plans for Bartell Vibratory Plate Compactor Model B1824-L

Integrate maintenance plans directly into your work orders in MaintainX.

6 Monthly / 200 Hourly Vibratory Plate Compactor Maintenance

General Inspection:

Check guards

Check warning stickers

Test run: Check operation

Engine:

Check engine oil level. Lubrication – Always check engine oil regularly. Use proper engine oil as recommended. Fill crankcase to levels as recommended in manufacture’s engine manual.

Change engine oil. Keep engine oil clean, change accordingly.

Replace engine oil filter

Clean oil cooler

Run this procedure

Vibratory Plate Compactor Maintenance

Regular service according to the schedule above will prolong the life of the plate compactor and prevent expensive repairs.

Failure to have your vibratory plate compactor regularly serviced and properly maintained in accordance with the manufacturer’s instructions will lead to premature failure and void the warranty.

Maintenance after each use: Engine:

Check engine oil level. Lubrication – Always check engine oil regularly. Use proper engine oil as recommended. Fill crankcase to levels as recommended in manufacture’s engine manual.

Check and clean air cleaner. Air Cleaner - Keep air filter clean at all times. Wash away dust and debris using a non-oil based cleaning solvent. Let the filter dry before re-installing.;

Exciter:

Check exciter oil level

Change exciter oil

Check drive belt tightness

Run this procedure

3 Monthly / 100 Hourly Vibratory Plate Compactor Maintenance

General Inspection:

Check guards

Check warning stickers

Test run: Check operation

Engine:

Check engine oil level. Lubrication – Always check engine oil regularly. Use proper engine oil as recommended. Fill crankcase to levels as recommended in manufacture’s engine manual.

Change engine oil. Keep engine oil clean, change accordingly.

Clean oil cooler

Clean cooling fins

Run this procedure

Exciter Housing Lubrication

LUBRICATION

EXCITER HOUSING

Type of oil used

Amount of oil used (in oz.)

Was the exciter housing pre-serviced correctly?

Sign off on the exciter housing lubrication

Run this procedure

6 Weekly / 50 Hourly Vibratory Plate Compactor Maintenance

General Inspection:

Check guards

Check warning stickers

Test run: Check operation

Engine:

Check engine oil level. Lubrication – Always check engine oil regularly. Use proper engine oil as recommended. Fill crankcase to levels as recommended in manufacture’s engine manual.

Change engine oil. Keep engine oil clean, change accordingly.

Clean cooling fins

Check and clean air cleaner. Air Cleaner - Keep air filter clean at all times. Wash away dust and debris using a non-oil based cleaning solvent. Let the filter dry before re-installing.

Run this procedure
