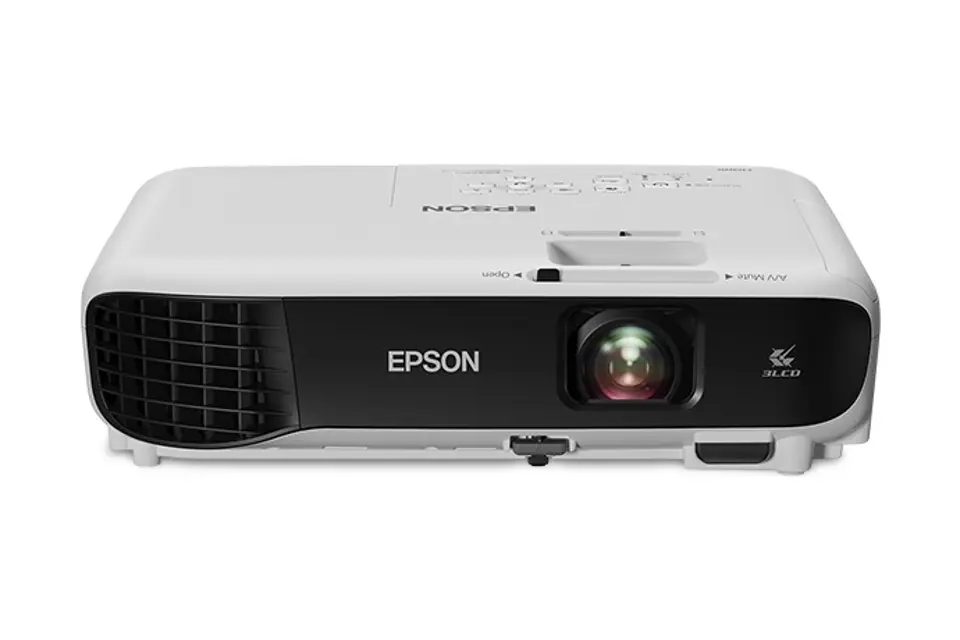

Epson Multimedia Projector EX3260

Warning: Before cleaning any part of the projector, turn it off and unplug the power cord. Never open any cover on the projector, except as specifically explained in this manual. Dangerous electrical voltages in the projector can injure you severely.

Warning: Do not try to service this product yourself, except as specifically explained in this manual. Refer all other servicing to qualified servicers.

Projector turned off and power cord unplugged

To remove stubborn smudges, moisten a soft, lint-free cloth with lens cleaner and gently wipe the lens. Do not spray any liquid directly on the lens.

Lens cleaned with moistened, lint-free cloth

Warning: Do not use a lens cleaner that contains flammable gas. The high heat generated by the projector lamp may cause a fire.

Caution: Do not use glass cleaner or any harsh materials to clean the lens and do not subject the lens to any impacts; you may damage it. Do not use canned air, or the gases may leave a residue. Avoid touching the lens with your bare hands to prevent fingerprints on or damage to the lens surface.

Lens cleaned without using flammable gas, glass cleaner, harsh materials, canned air, or bare hands

You need to replace the air filter in the following situations:

• After cleaning the air filter, you see a message telling you to clean or replace it

• The air filter is torn or damaged

You can replace the air filter while the projector is mounted to the ceiling or placed on a table.

1. Turn off the projector and unplug the power cord.

2. Carefully open the air filter cover.

3. Pull the air filter out of the projector.

Note: Air filters contain ABS resin and polyurethane foam. Dispose of used air filters according to local regulations.

Warning: Let the lamp fully cool before replacing it to avoid injury.

Is the projected image darker or deteriorating?

Did a message appear when you turned on the projector telling you to replace the lamp?

Is the projector's Lamp light flashing orange and its power light flashing blue?

Did you turn off the projector and unplug the power cord?

Did you allow the projector lamp to cool down for at least one hour?

Did you use the screwdriver included with the replacement lamp to loosen the screw securing the lamp cover?

Did you slide the lamp cover out and lift it off?

Warning: Ensure the projector is turned off and unplugged before starting the cleaning process.

Is the projector turned off and unplugged?

Upload a photo of the dusty air filter or vents

Was the dust gently removed using a small vacuum or a very soft brush?

Note: You can remove the air filter so you can clean both sides of it. Do not rinse the air filter in water, or use any detergent or solvent to clean it.

Caution: Do not use canned air. The gases may leave a flammable residue or push dust and debris into the projector's optics or other sensitive areas.

Was the air filter removed for cleaning?

Was the air filter cleaned without using water, detergent, solvent, or canned air?

Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, or mix new and old batteries.

Remove the battery cover as shown.

Warning: If the battery fluid has leaked, wipe it away with a soft cloth and avoid getting the fluid on your hands. If it gets on your hands, wash them immediately to avoid injury.

Insert the batteries with the + and– ends facing as shown.

Replace the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.

Sign off on the battery replacement procedure
