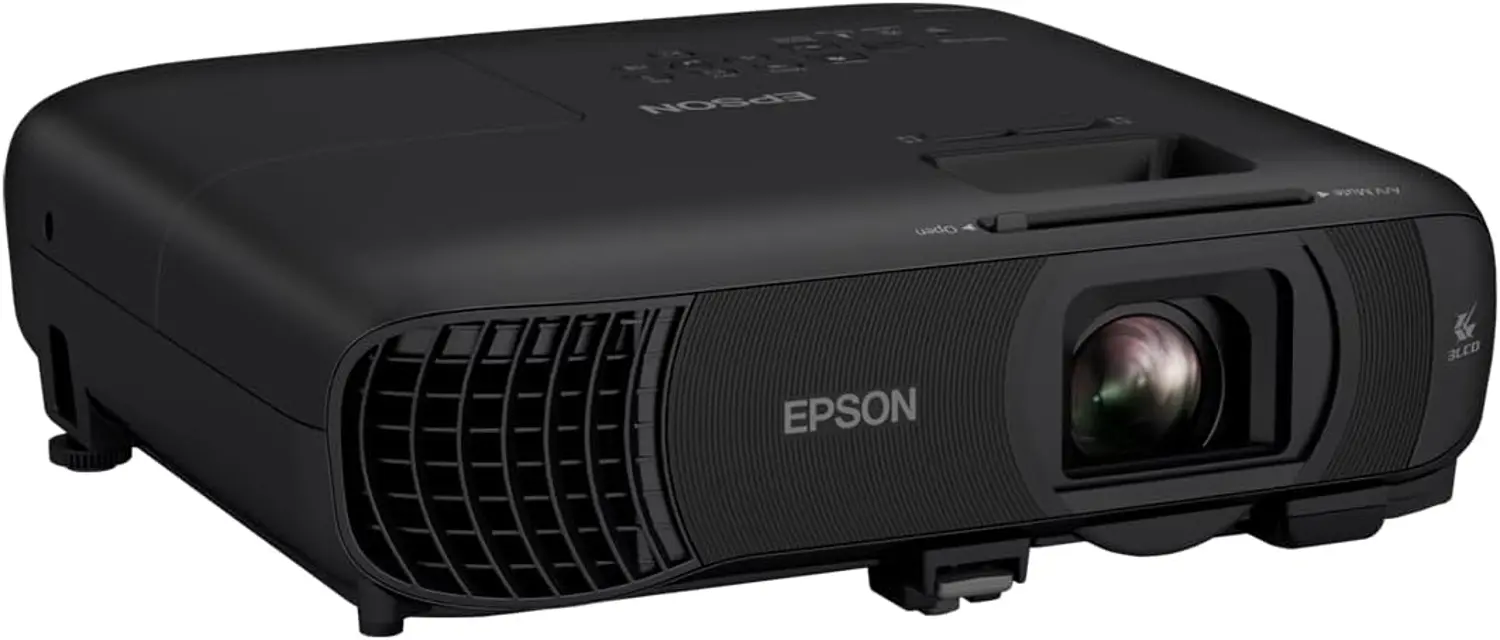

Epson Multimedia Projector Pro EX9220

The projector keeps track of the number of hours the lamp is used and displays this information in the projector's menu system.

Replace the lamp as soon as possible when the following occurs:

• The projected image gets darker or starts to deteriorate

• A message appears when you turn on the projector telling you to replace the lamp

• The projector's Lamp light is flashing orange and its power light is flashing blue

Before you replace the lamp, let the projector cool down for at least one hour so the lamp will not be hot.

Warning: Let the lamp fully cool before replacing it to avoid injury.

You can replace the lamp while the projector is mounted to the ceiling, if necessary.

Warning: Before cleaning any part of the projector, turn it off and unplug the power cord.

Warning: Never open any cover on the projector, except as specifically explained in this manual. Dangerous electrical voltages in the projector can injure you severely.

Warning: Do not try to service this product yourself, except as specifically explained in this manual. Refer all other servicing to qualified servicers.

Before cleaning the projector case, turn off the projector and unplug the power cord.

Did you use a soft, dry, lint-free cloth to remove dust or dirt?

Did you use a soft cloth moistened with water and mild soap to remove stubborn dirt?

Caution: Do not use wax, alcohol, benzine, paint thinner, or other chemicals to clean the projector case. These can damage the case.

Caution: Do not use canned air, or the gases may leave a flammable residue.

Warning: Do not use canned air. The gases may leave a flammable residue or push dust and debris into the projector's optics or other sensitive areas.

Turn off the projector and unplug the power cord.

Gently remove the dust using a small vacuum designed for computers or a very soft brush (such as a paintbrush).

Note: You can remove the air filter so you can clean both sides of it. Do not rinse the air filter in water, or use any detergent or solvent to clean it.

If dust is difficult to remove or the air filter is damaged, replace the air filter.

Sign off on the air filter and vents cleaning

You need to replace the air filter in the following situations:

• After cleaning the air filter, you see a message telling you to clean or replace it

• The air filter is torn or damaged

You can replace the air filter while the projector is mounted to the ceiling or placed on a table.

1. Turn off the projector and unplug the power cord.

2. Carefully open the air filter cover.

3. Pull the air filter out of the projector.

Note: Air filters contain ABS resin and polyurethane foam. Dispose of used air filters according to local regulations.

Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, or mix new and old batteries.

Remove the battery cover as shown.

Warning: If the battery fluid has leaked, wipe it away with a soft cloth and avoid getting the fluid on your hands. If it gets on your hands, wash them immediately to avoid injury.

Insert the batteries with the + and– ends facing as shown.

Replace the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.

Sign off on the battery replacement procedure
