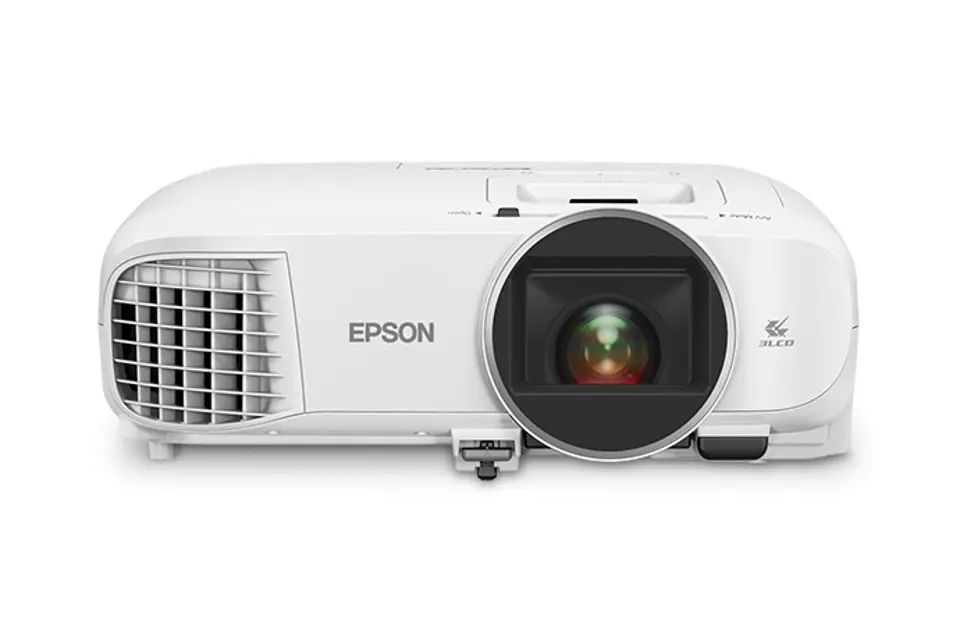

Epson Home Cinema 2100

Create an account to install this asset package.

Maintenance Plans for Epson Home Cinema Model 2100

Integrate maintenance plans directly into your work orders in MaintainX.

Air Filter Replacement

Replacing the Air Filter

You need to replace the air filter in the following situations:

• After cleaning the air filter, you see a message telling you to clean or replace it

• The air filter is torn or damaged

You can replace the air filter while the projector is mounted to the ceiling or placed on a table.

1. Turn off the projector and unplug the power cord.

2. Carefully open the air filter cover.

3. Pull the air filter out of the projector.

Note: Air filters contain ABS resin and polyurethane foam. Dispose of used air filters according to local regulations.

Run this procedure

Lamp Timer Resetting

Turn on the projector

Press the Menu button

Select the Reset menu and press Enter

Select Reset Lamp Hours and press Enter

You see a prompt asking if you want to reset the lamp hours

Select Yes and press Enter

Press Menu or Esc to exit the menus

Sign off on the lamp timer resetting

Run this procedure

Lens Cleaning

Warning: Before cleaning any part of the projector, turn it off and unplug the power cord. Never open any cover on the projector, except as specifically explained in this manual. Dangerous electrical voltages in the projector can injure you severely. Do not try to service this product yourself, except as specifically explained in this manual. Refer all other servicing to qualified servicers.

Projector turned off and power cord unplugged

Lens has dust or smudges

To remove dust or smudges, gently wipe the lens with lens-cleaning paper.

Dust or smudges removed with lens-cleaning paper

To remove stubborn smudges, moisten a soft, lint-free cloth with lens cleaner and gently wipe the lens. Do not spray any liquid directly on the lens.

Stubborn smudges removed with moistened cloth

Warning: Do not use a lens cleaner that contains flammable gas. The high heat generated by the projector lamp may cause a fire. Caution: Do not use glass cleaner or any harsh materials to clean the lens and do not subject the lens to any impacts; you may damage it. Do not use canned air, or the gases may leave a residue. Avoid touching the lens with your bare hands to prevent fingerprints on or damage to the lens surface.

Sign off on the lens cleaning

Run this procedure

Air Filter and Vents Cleaning

Warning: Before cleaning any part of the projector, turn it off and unplug the power cord.

Never open any cover on the projector, except as specifically explained in this manual.

Dangerous electrical voltages in the projector can injure you severely.

Warning: Do not try to service this product yourself, except as specifically explained in this manual.

Refer all other servicing to qualified servicers.

Cleaning the Air Filter and Vents

Clean the projector's air filter or vents if they get dusty, or if you see a message telling you to clean them.

1. Turn off the projector and unplug the power cord.

2. Gently remove the dust using a small vacuum designed for computers or a very soft brush (such as a paintbrush).

Run this procedure

Projector Case Cleaning

Projector turned off and power cord unplugged

Soft, dry, lint-free cloth used for dust removal

Soft cloth moistened with water and mild soap used for stubborn dirt

Caution: Do not use wax, alcohol, benzine, paint thinner, or other chemicals to clean the projector case. These can damage the case. Do not use canned air, or the gases may leave a flammable residue.

Sign off on the projector case cleaning

Run this procedure
