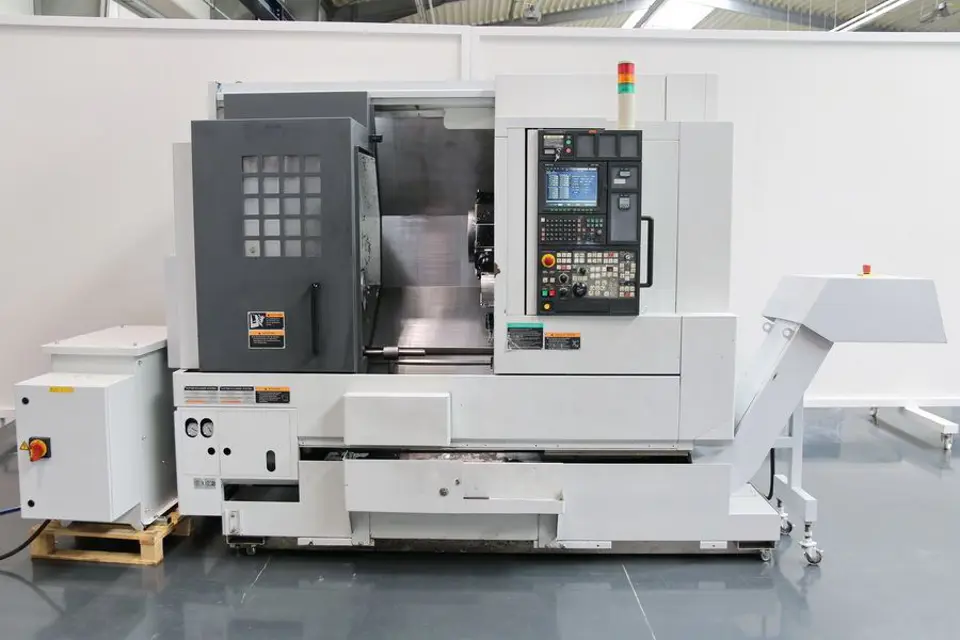

Mori Seiki CNC Turning Center NL2500SY/700

Precautions when Performing Maintenance Work on Pneumatic Devices

Pressure gage inspected and set at the correct value

Used a ladder or service platform when working in elevated places

Air Filter Inspection and Element Replacement

Valve turned CW to shut off the compressed air supply

Manual drain cock turned in the counterclockwise direction to release residual pressure

Pressure gage reading after releasing residual pressure

Air filter element inspected/replaced

19 HIGH PRESSURE COOLANT UNIT (OPTION)

1. Do not operate the high pressure coolant unit or perform maintenance and inspections without reading and obtaining a thorough understanding of the contents of the operation manual provided with the high pressure coolant unit.

2. Keep the high pressure coolant unit operation manual on hand to enable immediate reference.

3. After the completion of the maintenance and inspections, remount all covers before running the machine.

19-5 High Pressure Pump Oil Replacement and V-Belt Inspection

1. Change the NC memory back-up battery and servo absolute position sensing battery with power supplied to the NC.

2. Before changing the batteries, save the memory data such as parameters and programs as backup in an external I/O device such as a memory card or USB memory.

3. Always ensure that the polarity of the batteries is correct.

Function selection key (SYSTEM) → [PERIODIC INSPECT.]

Confirm 'BATTERY REPLACEMENT' accumulate time.

CAUTION: Do not rotate the spindle without a workpiece clamped in the chuck.

Is a well-balanced workpiece, as small in diameter as possible, clamped in the chuck with the usual chucking pressure?

Is the spindle warm-up performed below the maximum permissible rotation speed of the chuck, workpiece, and fixture?

Are the chuck, workpiece, fixture, and tool mounted securely before performing the spindle warm-up?

Is the rotary tool-spindle warm-up performed at or below the maximum permissible rotation speed of tool holder?

Is the tool to be mounted on the rotary tool-spindle a small diameter tool that can be rotated at the maximum spindle speed or more?

NOTE: Adjust the rotation speed for warm-up based on the maximum rotation speed for the machining programs used for the day.

Enter the rotation speed for warm-up

Sign off on the daily spindle warm-up

19 HIGH PRESSURE COOLANT UNIT (OPTION)

1. Do not operate the high pressure coolant unit or perform maintenance and inspections without reading and obtaining a thorough understanding of the contents of the operation manual provided with the high pressure coolant unit.

2. Keep the high pressure coolant unit operation manual on hand to enable immediate reference.

3. After the completion of the maintenance and inspections, remount all covers before running the machine.

19-2 Cleaning Notch Clean Filter

1) Turn the handle in the arrow direction several times.

2) In order to drain coolant, hold the valve halfway open when the machine is running and hold the valve fully open when the machine is not running.
