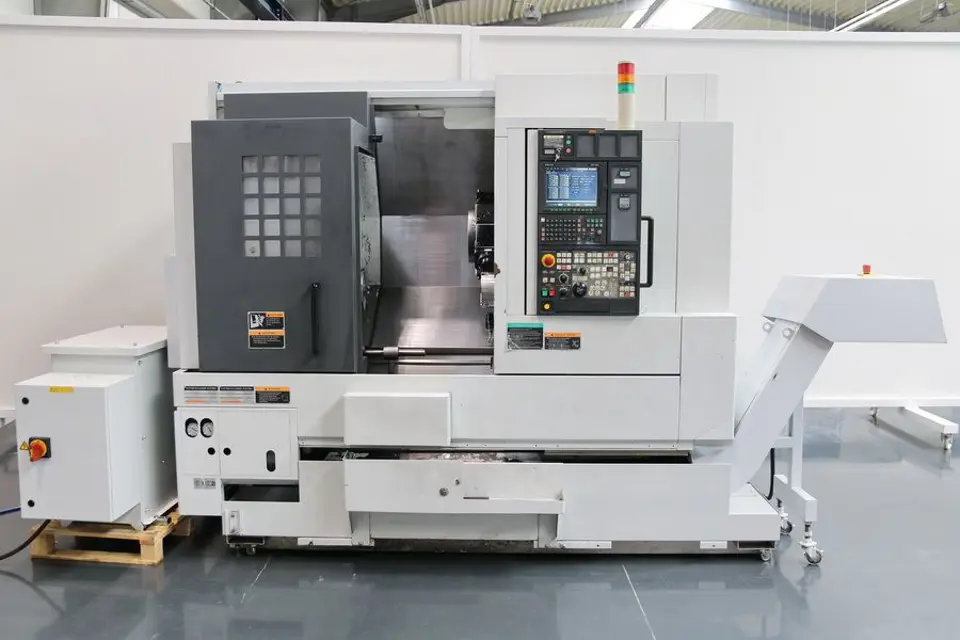

Mori Seiki CNC Turning Center NL1500S/500

Remove the nozzle head and remove chips and foreign matters

Do not touch chips with bear hands. If handling chips, wear gloves that have resistance to cutting

Sign off on the coolant gun cleaning

Precautions when Using Coolant Cooling Unit

Read and understood the contents of the coolant cooling unit instruction manual

Keep the coolant cooling unit instruction manual on hand for immediate reference

Is the machine temperature follow-up control in use?

Cleaning Air Filter and Condenser

Remove dust and oil from the air filter using a compressed air gun or wash the air filter with a neutral detergent

Remove dust and oil from the condenser using a compressed air gun or a blush

WARNING: Turn OFF the main power.

Suction filter and fill port filter removed

NOTE: Take care not to spill lubricant when removing the tank.

Inside of the tank cleaned with a neutral detergent

Suction filter and fill port filter cleaned with kerosene and blown with compressed air

CAUTION: Protective glasses must be worn to prevent eye damage from dust or foreign matter (those who are wearing glasses included).

CAUTION: Use caution when using kerosene, and make sure there is no open flame in the vicinity.

19 HIGH PRESSURE COOLANT UNIT (OPTION)

1. Do not operate the high pressure coolant unit or perform maintenance and inspections without reading and obtaining a thorough understanding of the contents of the operation manual provided with the high pressure coolant unit.

2. Keep the high pressure coolant unit operation manual on hand to enable immediate reference.

3. After the completion of the maintenance and inspections, remount all covers before running the machine.

19-3 Replenishing Coolant to Clean Tank

DANGER: Turn OFF the main power and disconnect the plant-side power supply (breaker).

WARNING: Disassemble and clean the chuck regularly. Ensure grease is supplied to the chuck daily.

Is the through hole cover installed to the chuck if the through hole is not used?

Check if chips and coolant have entered the chuck or if grease supply is insufficient

Inspect the chucking jaw and jig mounting hexagon socket head cap screw regularly. If the gap between the socket hole and the hex wrench is excessive, replace the screw.

CAUTION: When using compressed air, wear protective glasses to prevent eye damage from dust or foreign matter (those who wear glasses are included).

Did you take care not to blow air against the spindle front cover when using compressed air?

Clean the chuck through hole using compressed air to remove chips and dust.

Refer to the chuck manufacturer's manual for disassembly procedure.
