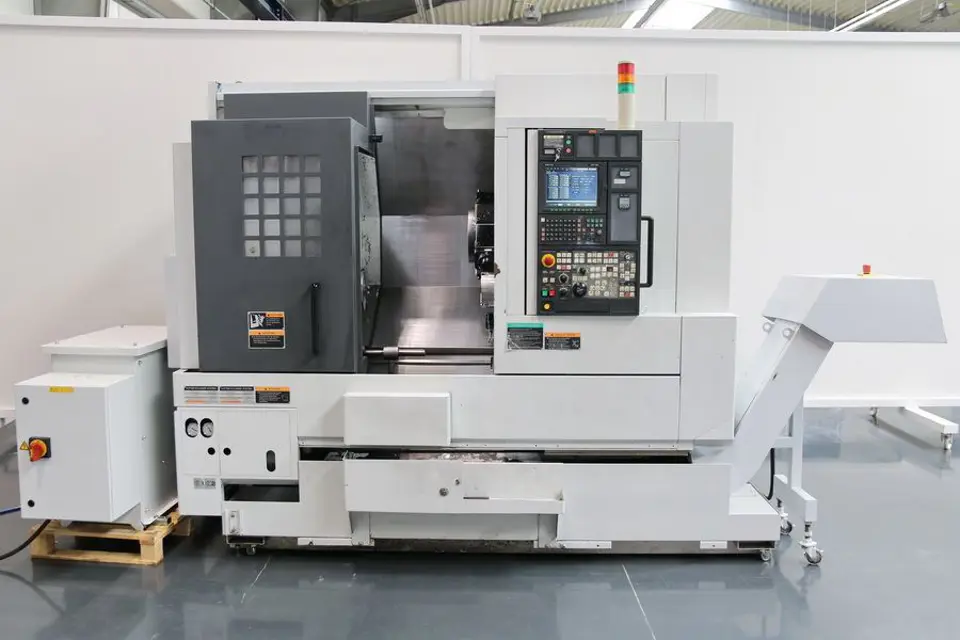

Mori Seiki CNC Turning Center NL3000Y/3000

Create an account to install this asset package.

Maintenance Plans for Mori Seiki CNC Turning Center Model NL3000Y/3000

Integrate maintenance plans directly into your work orders in MaintainX.

800 Hourly High Pressure Pump Oil Replacement

19 HIGH PRESSURE COOLANT UNIT (OPTION)

WARNING

1. Do not operate the high pressure coolant unit or perform maintenance and inspections without reading and obtaining a thorough understanding of the contents of the operation manual provided with the high pressure coolant unit.

2. Keep the high pressure coolant unit operation manual on hand to enable immediate reference.

3. After the completion of the maintenance and inspections, remount all covers before running the machine.

19-5 High Pressure Pump Oil Replacement and V-Belt Inspection

1) Remove the rear cover.

WARNING

Run this procedure

2000 Hourly Cooling Oil Replacement

13 OIL TEMPERATURE CONTROLLER

WARNING

Ensure that the power is turned OFF when performing maintenance.

13-2 Replacing Cooling Oil

1) Turn OFF the main power.

2) Remove the maintenance cover.

3) Place an oil pan beneath the drain plug.

4) Remove the drain plug and drain all oil from the tank.

Run this procedure

Semi Dry-Cut System Oil Supply Quantity Adjustment

15 SEMI DRY-CUT SYSTEM (OPTION)

15-1 Adjusting Oil Supply Quantity

Normally set the oil regulating knob at '2'.

Oil consumption with the oil regulating knob set at '2' varies according to the diameter of the nozzle or the oil hole.

Adjust the setting with the oil regulating knob in accordance with the cutting conditions.

NOTE

The supplied air pressure should be 0.4 to 0.6 MPa (0.5 MPa recommended).

Refer to the semi dry-cut system instruction manual published separately for details.

Enter the air pressure supplied

Run this procedure

Coolant Gun Cleaning

10 COOLANT UNIT

10-10 Coolant Gun (Option)

Cleaning Coolant Gun

Remove the nozzle head and remove chips and foreign matters

CAUTION: Do not touch chips with bear hands. If handling chips, wear gloves that have resistance to cutting. [Injury]

Sign off on the coolant gun cleaning

Run this procedure

1000 Hourly Electrical Cabinet Fan Cleaning

DANGER: Prior to opening the electrical cabinet door, take care to ensure the plant-side power supply (circuit breaker) is turned OFF. Even when the main switch on the electrical cabinet is turned OFF, parts in the cabinet may still hold residual current resulting in an electric shock if touched accidentally.

CAUTION: If foreign matter adheres to the fan, it impairs cooling performance. Clean the fan periodically.

Turn OFF the main power

Disconnect the plant-side power supply (breaker)

Open the electrical cabinet door

Remove the screws A and remove the fan body with the securing board

NOTE: Do not remove the screws B first. Otherwise, the fan body will fall.

Remove the power connector

Remove the screws B and remove the fan guard

Run this procedure
