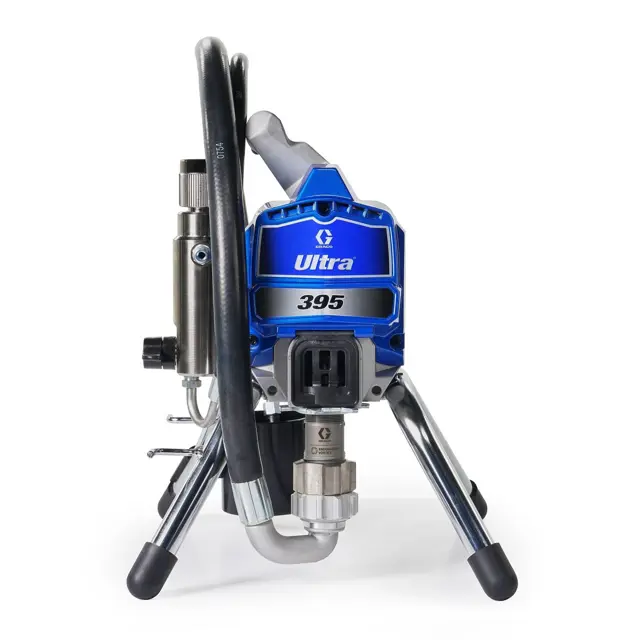

Graco Electric Airless Sprayer Ultra 395 PC Pro

Warning: This adjustment requires trained personnel with PPE!

Enter the usage of the pump in gallons

If the pump packing is leaking, tighten the packing nut until leakage stops or lessens.

Did the leakage stop after tightening the packing nut?

If the leakage did not stop, a repacking is required.

Sign off on the sprayer throat packing adjustment

Perform Pressure Relief Procedure

Remove fluid intake and drain tube from paint, wipe excess paint off outside

Place fluid intake in flushing fluid. Use water for water base paint and mineral spirits for oil-based paint. Place drain tube in waste pail

Increase pressure 1/2 turn to start motor. Hold gun against paint pail. Disengage trigger lock. Trigger gun and increase pressure until the pump runs steady and flushing fluid appears

Stop triggering gun. Move gun to waste pail, hold gun against pail, trigger gun to thoroughly flush system

While continuing to trigger gun, turn prime valve down. Then, release gun trigger. Allow flushing fluid to circulate until fluid comes out of drain tube clear

Raise fluid intake above flushing fluid

Inspect/clean fluid inlet strainer

Inspect motor shield vents for blockage

Fill TSL by adding through TSL fill point

Sign off on the daily sprayer inspection

Warning: This check requires trained personnel with PPE!

Enter the current motor brush length in mm

Are both motor brushes at least 13mm long?

Does the sprayer stall when the gun is not triggered?

Does the sprayer restart without the gun being triggered?

Any internal/external leaks in the pump?
