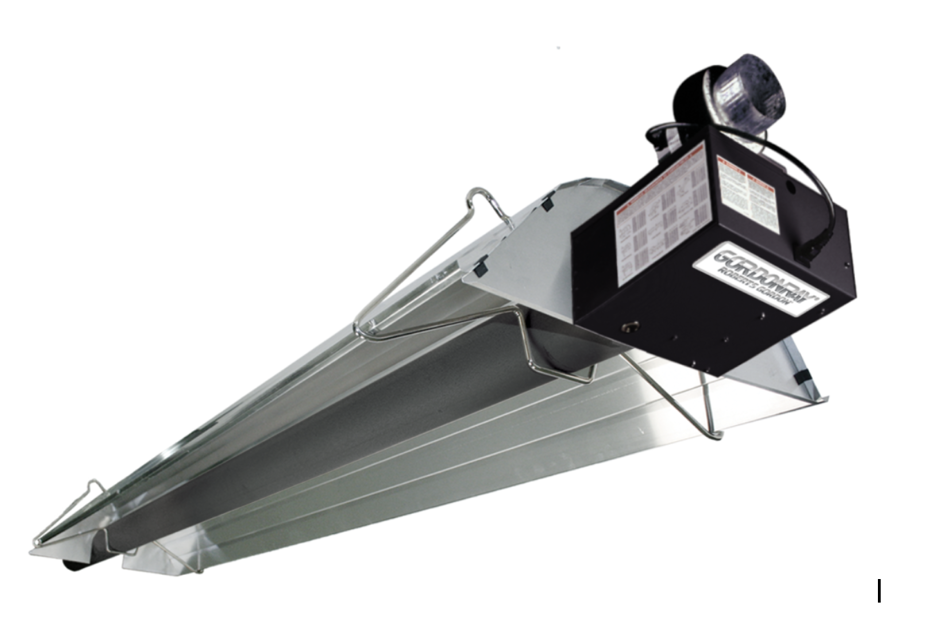

Roberts-Gordon Infrared Heater BH-200

Using a flashlight, look for obstructions, cracks on the pipe, gaps in the sealed areas, or corrosion

The area must be free of dirt and dust

Remove any carbon deposits or scale using a wire brush

WARNING: Carbon Monoxide Hazard

Heaters installed unvented must be interlocked with sufficient building exhaust

Heaters must be installed according to the installation manual

Failure to follow these instructions can result in death or injury

Tubes.; Make sure there are no cracks.; Make sure tubes are connected and suspended securely.; See Page 16, Section 6.; Make sure there is no sagging, bending, or distortion.; Clean or replace as required.; SECTION 6: HEATER INSTALLATION

Secure burner to burner tube with nuts and lockwashers

Hang heater with materials with a minimum working load of 75 lbs (33 kg)

Failure to follow these instructions can result in death, injury or property damage

Wear protective gear during installation, operation and service

SECTION 10: WIRING DANGER - Electrical Shock Hazard - Disconnect electric before service - Heater must be properly earthed - Failure to follow these instructions can result in death or electrical shock

Heaters can be controlled using several methods. Normally thermostats are used to control the heaters but they can also be controlled by an energy management system.

Heaters must be grounded in accordance with applicable codes: United States: Refer to National Electrical Code® NFPA 70 - latest revision. Canada: Refer to Canadian Electrical Code CSA C22.1 Part I - latest revision.

No exposed wire or damage to the thermostat

Upload a photo of the thermostat

Temperature reading of the thermostat

Sign off on the thermostat inspection

Gas hose fittings tightened according to Figure 23

Gas hose not cracked or twisted

Gas hose moves during normal operation

Correct connector length and ID used

Gas hose installed as shown on Page 46, Figure 24

High pressure testing of the gas piping completed

Wall Tag.; If wall tag is present, make sure it is legible and accurate.; Please contact Roberts-Gordon LLC or your ROBERTS GORDON independent distributor if you need a wall tag.; See Page 4, Section 2.1.; 2.1 Wall Tag

A laminated wall tag is available for the heater as a permanent reminder of the safety instructions and the importance of the required clearances to combustibles

Please contact Roberts-Gordon LLC or your ROBERTS GORDON® independent distributor to obtain the wall tag

Affix the tag by peeling off the backing of the adhesive strips on the rear surface and position the tag on a wall near the heater (e.g. thermostat or ROBERTS GORDON® Controller)

A copy of the wall tag (P/N 91037912) is illustrated on the back cover

For an immediate solution, you may affix this copy on the wall near the heater

Know your model number and installed configuration

Model number and installed configuration are found on the burner and in the Installation, Operation and Service Manual

See Page 6, Figure 3 through Page 9, Figure 12
