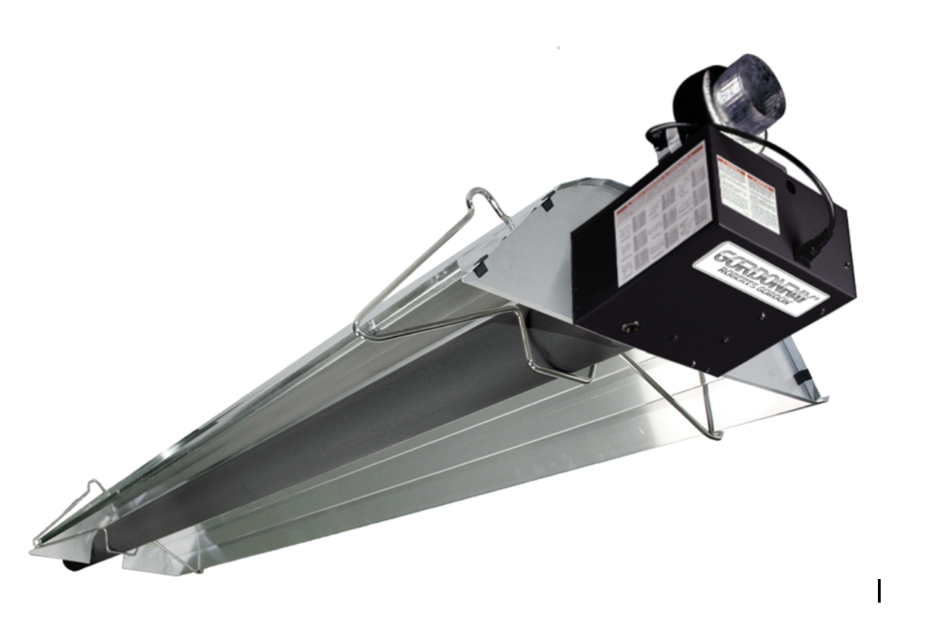

Roberts-Gordon Infrared Heater BH-80

Tubes.; Make sure there are no cracks.; Make sure tubes are connected and suspended securely.; See Page 16, Section 6.; Make sure there is no sagging, bending, or distortion.; Clean or replace as required.; SECTION 6: HEATER INSTALLATION

Secure burner to burner tube with nuts and lockwashers

Hang heater with materials with a minimum working load of 75 lbs (33 kg)

Failure to follow these instructions can result in death, injury or property damage

Wear protective gear during installation, operation and service

Do not store or use flammable objects, liquids, or vapors near the heater

Immediately remove these items if they are present

Maintain the clearances to combustibles

Do not hang anything from, or place anything on, the heater

Make sure nothing is lodged underneath the reflector, in between the tubes, or in the decorative or protective grilles included with select models

Immediately remove objects in violation of the clearances to combustibles

Disconnect electric before service

Heater must be properly earthed

Failure to follow these instructions can result in death or electrical shock

Heaters can be controlled using several methods

Normally thermostats are used to control the heaters but they can also be controlled by an energy management system

Section 10.1 illustrates the connection for heaters controlled by a line voltage thermostat

For heaters on a low voltage thermostat, See Page 48, Section 10.2

Reflector supported with hanger and strap

No dirt, sagging, cracking, or distortion on reflector

Upload a photo of the reflector

Step 6.5.1 Reflector, U-Clip and Reflector Support Installation

Proper expansion and contraction movement of the reflectors

Positioning of reflector supports and U-clips depend on the individual installation

Gas hose fittings tightened according to Figure 23

Gas hose not cracked or twisted

Gas hose moves during normal operation

36\ (91 cm) long connector of 1/2\" or 3/4\" nominal ID used"

Gas hose installed as shown on Page 46, Figure 24

High pressure testing of the gas piping completed
