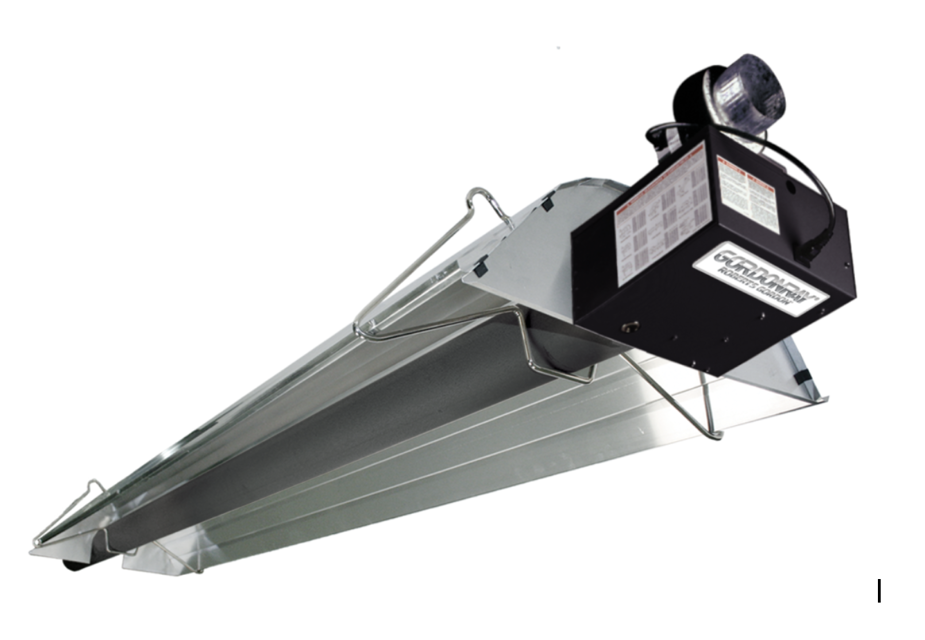

Roberts-Gordon Infrared Heater BH-40

Vent Pipe.; Venting must be intact.; Using a flashlight, look for obstructions, cracks on the pipe, gaps in the sealed areas, or corrosion.; The area must be free of dirt and dust.; Remove any carbon deposits or scale using a wire brush.; See Page 37, Section 8.; WARNING

Heaters installed unvented must be interlocked with sufficient building exhaust

Heaters must be installed according to the installation manual

Failure to follow these instructions can result in death or injury

Wear protective gear during installation, operation and service

Do not store or use flammable objects, liquids, or vapors near the heater

Immediately remove these items if they are present

Maintain the clearances to combustibles

Do not hang anything from, or place anything on, the heater

Make sure nothing is lodged underneath the reflector, in between the tubes, or in the decorative or protective grilles included with select models

Immediately remove objects in violation of the clearances to combustibles

If wall tag is not present or not accurate, contact Roberts-Gordon LLC or your ROBERTS GORDON independent distributor

Affix the tag by peeling off the backing of the adhesive strips on the rear surface and position the tag on a wall near the heater (e.g. thermostat or ROBERTS GORDON® Controller)

A copy of the wall tag (P/N 91037912) is illustrated on the back cover

For an immediate solution, you may affix this copy on the wall near the heater

Know your model number and installed configuration

Model number and installed configuration are found on the burner and in the Installation, Operation and Service Manual

Write the proper clearance dimensions in permanent ink according to your model number and configuration in the open spaces on the tag

Gas hose fittings tightened according to Figure 23

Gas hose not cracked or twisted

Gas hose moves during normal operation

36\ (91 cm) long connector of 1/2\" or 3/4\" nominal ID used"

Gas hose installed as shown on Page 46, Figure 24

High pressure testing of the gas piping completed

Reflector supported with hanger and strap

No dirt, sagging, cracking, or distortion on reflector

Upload a photo of the reflector

Reflector, U-Clip and Reflector Support Installation

First reflector after burner slid minimum 2” (4 cm) through first hanger

Reflector end cap securely fastened
