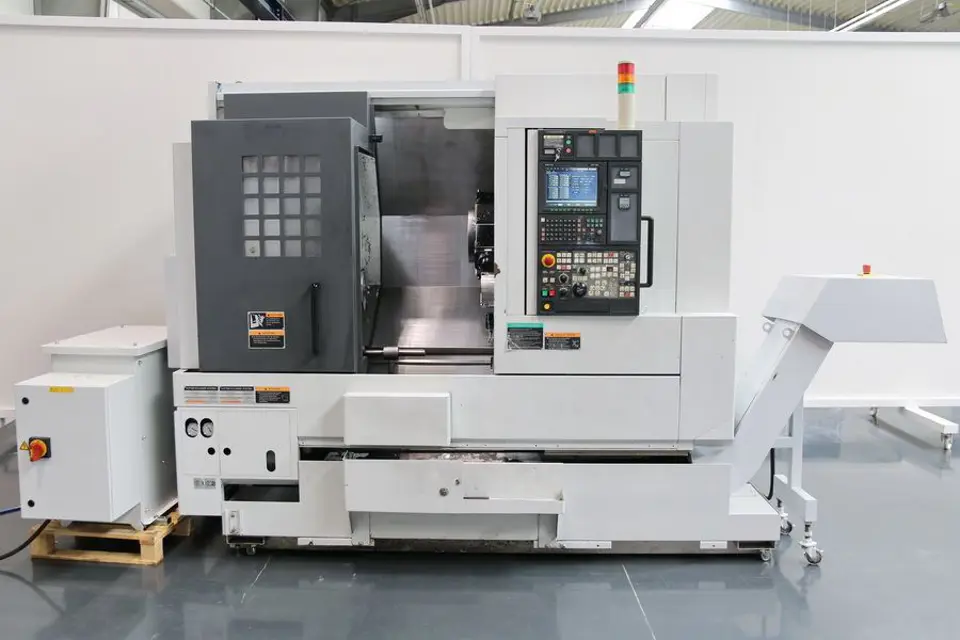

Mori Seiki CNC Turning Center NL2500S/700

WARNING: Ensure that the power is turned OFF when performing maintenance.

13-1 Cleaning Air Filter and Condenser

CAUTION: Pay sufficient care not to catch the temperature sensor with the air filter.

NOTE: The condenser is exposed when the filter is removed.

Wash the air filter with a neutral detergent and tepid water (not warmer than 40 degrees).

Remove the neutral detergent using freshwater.

WARNING: Do not operate the high pressure coolant unit or perform maintenance and inspections without reading and obtaining a thorough understanding of the contents of the operation manual provided with the high pressure coolant unit.

Keep the high pressure coolant unit operation manual on hand to enable immediate reference.

After the completion of the maintenance and inspections, remount all covers before running the machine.

Turn OFF the main power before removing the rear cover.

Check for wear, damage and loose of the V-belt.

If necessary, adjust the V-belt tension.

Place the drain tube in a drain pan.

Drain oil in the tank by slowly opening the drain plug.

19 HIGH PRESSURE COOLANT UNIT (OPTION)

1. Do not operate the high pressure coolant unit or perform maintenance and inspections without reading and obtaining a thorough understanding of the contents of the operation manual provided with the high pressure coolant unit.

2. Keep the high pressure coolant unit operation manual on hand to enable immediate reference.

3. After the completion of the maintenance and inspections, remount all covers before running the machine.

19-3 Replenishing Coolant to Clean Tank

WARNING: Turn OFF the main power.

Suction filter and fill port filter removed

NOTE: Take care not to spill lubricant when removing the tank.

Inside of the tank cleaned with a neutral detergent

CAUTION: Protective glasses must be worn to prevent eye damage from dust or foreign matter (those who are wearing glasses included).

CAUTION: Use caution when using kerosene, and make sure there is no open flame in the vicinity.

Suction filter and fill port filter cleaned with kerosene and blown with compressed air

19 HIGH PRESSURE COOLANT UNIT (OPTION)

1. Do not operate the high pressure coolant unit or perform maintenance and inspections without reading and obtaining a thorough understanding of the contents of the operation manual provided with the high pressure coolant unit.

2. Keep the high pressure coolant unit operation manual on hand to enable immediate reference.

3. After the completion of the maintenance and inspections, remount all covers before running the machine.

1) Remove the separator cover of the clean tank and the dirty tank.
