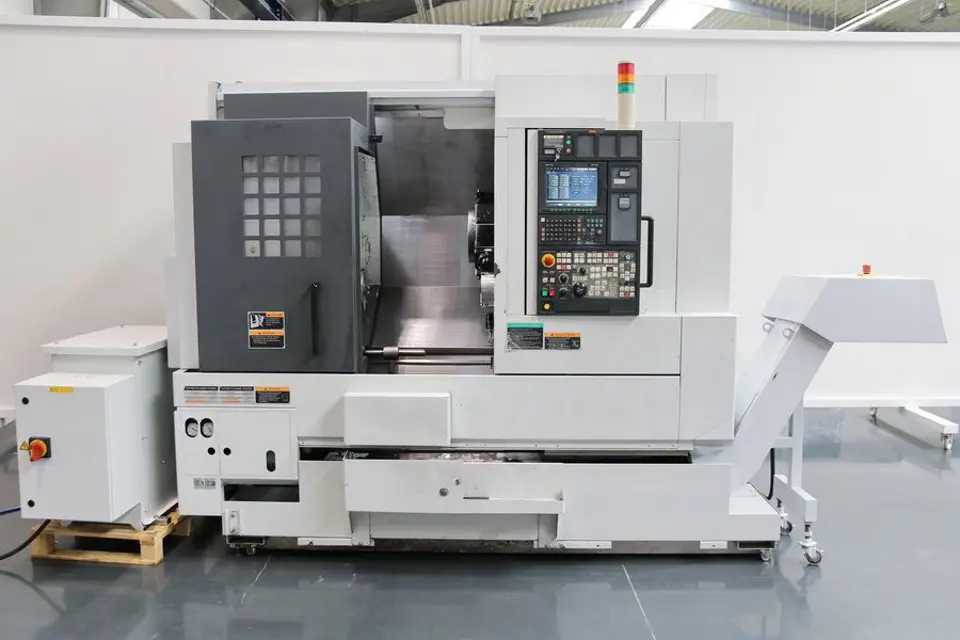

Mori Seiki CNC Turning Center NL1500SMC/500

WARNING: Do not operate the high pressure coolant unit or perform maintenance and inspections without reading and obtaining a thorough understanding of the contents of the operation manual provided with the high pressure coolant unit.

Keep the high pressure coolant unit operation manual on hand to enable immediate reference.

After the completion of the maintenance and inspections, remount all covers before running the machine.

Check for wear, damage and loose of the V-belt.

If necessary, adjust the V-belt tension.

Place the drain tube in a drain pan.

Drain oil in the tank by slowly opening the drain plug.

Remove the nozzle head and remove chips and foreign matters

CAUTION: Do not touch chips with bear hands. If handling chips, wear gloves that have resistance to cutting. [Injury]

Sign off on the coolant gun cleaning

10-1 Precautions when Selecting Coolant

Disregarding the following warnings will result in serious injuries and machine damage by fire.

Mori Seiki is not responsible for accidents and fires arising from disregard for the warnings.

1. Do not use a flammable coolant such as an oil-based coolant that may catch fire. If there is no choice but to use a flammable coolant, it is the users' responsibility to deal with fires and accidents caused by the coolant.

2. If using a flammable coolant, do not carry out unmanned operation.

3. If using a flammable coolant, install appropriate automatic fire extinguishing equipment.

4. If using a flammable coolant, the coolant cooling unit must be installed. Contact Mori Seiki.

Warning: Disconnect power before placing rags on the conveyor belt to avoid entanglement of hands or feet/Serious injury

Press the chip conveyor button • [FOR] (Forward). The indicator should be illuminated. The chip conveyor should move forward to discharge chips from machine.

Press the chip conveyor button • [STOP] (Stop). The indicator should be illuminated. The chip conveyor should stop.

Place an adequate quantity of rags on the conveyor belt.

Press the chip conveyor button [FOR] (Forward). The indicator should be illuminated.

Keep pressing the chip conveyor button • [FOR] (Forward). The chip conveyor should move forward to discharge chips and rags out of the machine only when the button is pressed.

Note: Steps 4) and 5) are for the scraper type chip conveyor. For the hinge type chip conveyor, move the chip conveyor backward by pressing the chip conveyor button [BACK] (Reverse)

For further details on the cleaning procedure, refer to the chip conveyor instruction manual published separately.

Sign off on the chip conveyor cleaning

Turn OFF the main power and disconnect the plant-side power supply (breaker).

[Machine failure due to chips and coolant entry]

2. To maintain machining accuracy, clean the machining chamber after completion of machining operations.

3. Do not touch chips without protective gloves.
