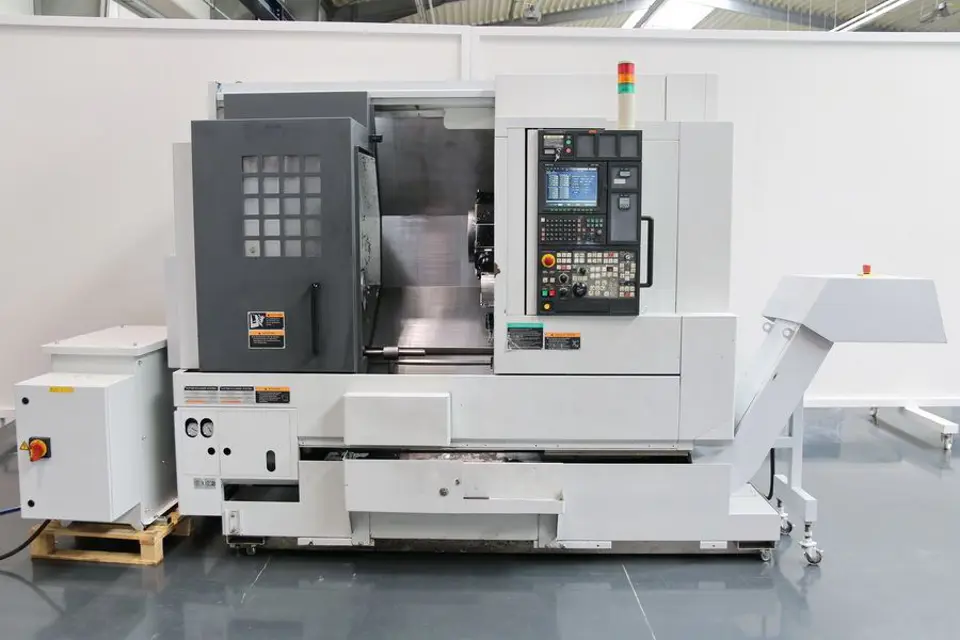

Mori Seiki CNC Turning Center NL3000MC/2000

Create an account to install this asset package.

Maintenance Plans for Mori Seiki CNC Turning Center Model NL3000MC/2000

Integrate maintenance plans directly into your work orders in MaintainX.

1 Daily Hydraulic Unit Pressure Gage Check

11 HYDRAULIC UNIT

11-1 Precautions when Performing Maintenance Work

DANGER

Turn OFF the main power.

CAUTION

1. If the oil level decreases rapidly, the pump unit or the machine may be malfunctioning. Contact the Mori Seiki Service Department for assistance.

2. Maintain oil at the correct level to prevent air being suctioned through the pump unit.

3. Keep oil free from contamination.

4. If foreign matter accumulates in the tank, oil cannot be kept free from contamination, causing pump damage.

Run this procedure

1 Yearly Chip Conveyor Belt Adjustment

WARNING: Turn OFF the main power. [Entanglement of hands or feet, serious injury]

Main power turned OFF

Drive cover removed

Parts A removed

Lock nut loosened

Tension in the belt adjusted by rotating the adjusting bolt

NOTE: Adjust the tension of the belt and make the gap between the side wing and wing guide even on either side (Figure B).

Lock nut tightened to secure the adjusting bolt

Belt pushed up with your hand in the direction C from the lower side of the discharge section

Run this procedure

1000 Hourly V-Belt Inspection

19 HIGH PRESSURE COOLANT UNIT (OPTION)

WARNING

1. Do not operate the high pressure coolant unit or perform maintenance and inspections without reading and obtaining a thorough understanding of the contents of the operation manual provided with the high pressure coolant unit.

2. Keep the high pressure coolant unit operation manual on hand to enable immediate reference.

3. After the completion of the maintenance and inspections, remount all covers before running the machine.

19-5 High Pressure Pump Oil Replacement and V-Belt Inspection

1) Remove the rear cover.

WARNING

Run this procedure

Hydraulic Unit Radiator Cleaning

11 HYDRAULIC UNIT

11-1 Precautions when Performing Maintenance Work

DANGER

Turn OFF the main power.

CAUTION

1. If the oil level decreases rapidly, the pump unit or the machine may be malfunctioning. Contact the Mori Seiki Service Department for assistance.

2. Maintain oil at the correct level to prevent air being suctioned through the pump unit.

3. Keep oil free from contamination.

4. If foreign matter accumulates in the tank, oil cannot be kept free from contamination, causing pump damage.

Run this procedure

500 Hourly Coolant Tank and Filter Cleaning

10 COOLANT UNIT

10-1 Precautions when Selecting Coolant

WARNING

Disregarding the following warnings will result in serious injuries and machine damage by fire.

Mori Seiki is not responsible for accidents and fires arising from disregard for the warnings.

1. Do not use a flammable coolant such as an oil-based coolant that may catch fire. If there is no choice but to use a flammable coolant, it is the users' responsibility to deal with fires and accidents caused by the coolant.

2. If using a flammable coolant, do not carry out unmanned operation.

3. If using a flammable coolant, install appropriate automatic fire extinguishing equipment.

4. If using a flammable coolant, the coolant cooling unit must be installed. Contact Mori Seiki.

Run this procedure
