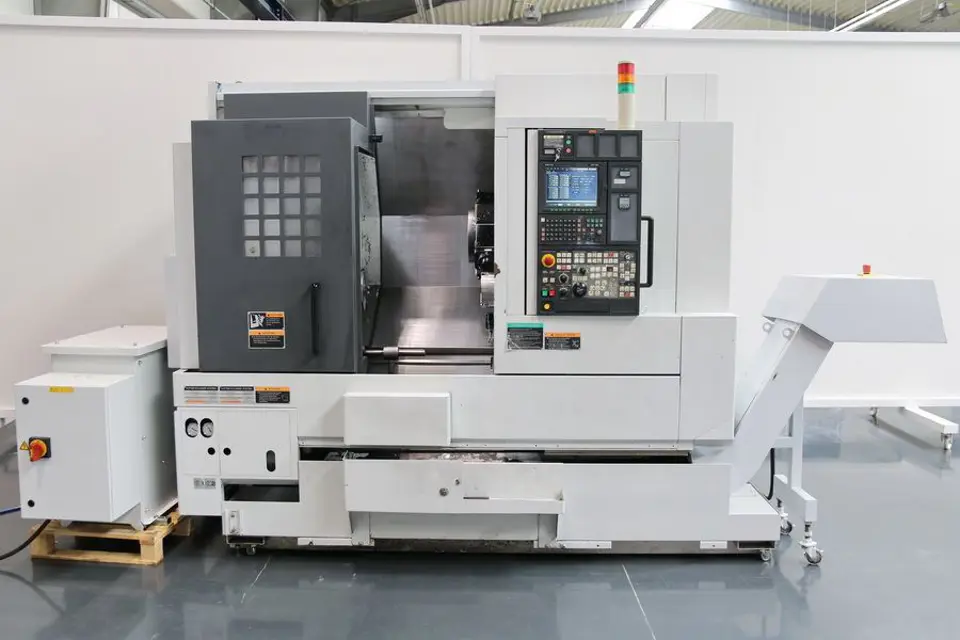

Mori Seiki CNC Turning Center NL2500Y/700

10-1 Precautions when Selecting Coolant

Disregarding the following warnings will result in serious injuries and machine damage by fire.

Mori Seiki is not responsible for accidents and fires arising from disregard for the warnings.

1. Do not use a flammable coolant such as an oil-based coolant that may catch fire. If there is no choice but to use a flammable coolant, it is the users' responsibility to deal with fires and accidents caused by the coolant.

2. If using a flammable coolant, do not carry out unmanned operation.

3. If using a flammable coolant, install appropriate automatic fire extinguishing equipment.

4. If using a flammable coolant, the coolant cooling unit must be installed. Contact Mori Seiki.

11-1 Precautions when Performing Maintenance Work

1. If the oil level decreases rapidly, the pump unit or the machine may be malfunctioning. Contact the Mori Seiki Service Department for assistance.

2. Maintain oil at the correct level to prevent air being suctioned through the pump unit.

3. Keep oil free from contamination.

4. If foreign matter accumulates in the tank, oil cannot be kept free from contamination, causing pump damage.

WARNING: Disregarding the following warnings will result in serious injuries and machine damage by fire. Mori Seiki is not responsible for accidents and fires arising from disregard for the warnings.

Do not use a flammable coolant such as an oil-based coolant that may catch fire. If there is no choice but to use a flammable coolant, it is the users' responsibility to deal with fires and accidents caused by the coolant.

If using a flammable coolant, do not carry out unmanned operation.

If using a flammable coolant, install appropriate automatic fire extinguishing equipment.

If using a flammable coolant, the coolant cooling unit must be installed. Contact Mori Seiki.

If a flammable oil-based coolant is used, its viscosity will increase in cold temperatures, which may result in tripping of the coolant pump thermal relay.

Receive the MSDS (MATERIAL SAFETY DATA SHEET) from the coolant manufacturer directly yourself as the customer and use coolant without any chemical effects on the machine.

CAUTION: Use coolant that satisfies the following conditions.

Select the properties of the coolant used

16-1 Precautions when Performing Maintenance Work on Pneumatic Devices

Inspect the pressure gage periodically. If not set at the correct value, adjustment is necessary.

[Serious injury/Machine failure]

Use a ladder or service platform when working in elevated places. Loss of balance may result in serious injury.

16-3 Manual Draining from Air Filter

The air filter is equipped with a float-type automatic drain unit. Draining is normally performed automatically by the drain unit. However, if draining is not performed automatically or if foreign matter has accumulated in the bottom of the bowl, turn the manual drain cock CCW to drain manually.

Check if the draining is performed automatically.

WARNING: Disregarding the following warnings will result in serious injuries and machine damage by fire. Mori Seiki is not responsible for accidents and fires arising from disregard for the warnings.

Is automatic fire extinguishing equipment installed?

Is the coolant cooling unit installed?

Is the coolant viscosity appropriate?

Have you received the MSDS (MATERIAL SAFETY DATA SHEET) from the coolant manufacturer?

CAUTION: Use coolant that satisfies the following conditions:

Select the properties of the coolant
