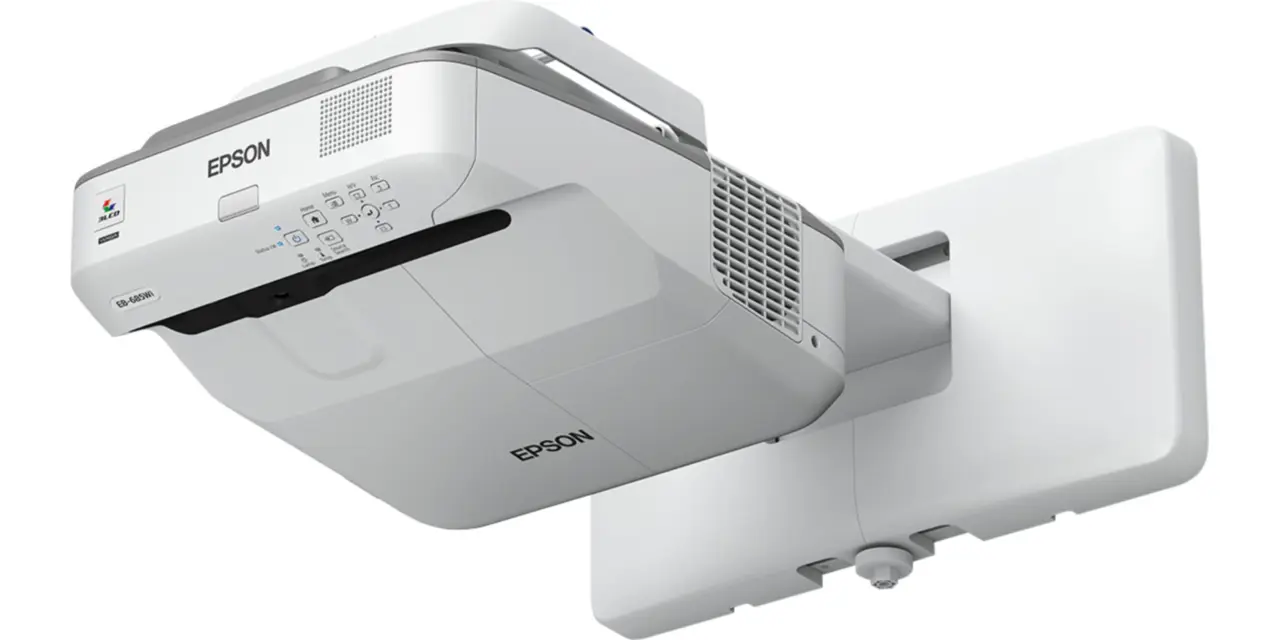

Epson Multimedia Projector EB-670

Create an account to install this asset package.

Maintenance Plans for Epson Multimedia Projector Model EB-670

Integrate maintenance plans directly into your work orders in MaintainX.

Interactive Pen Tip Replacement

Replacing the Interactive Pen Tip

Two interactive pens come with two types of pen tips, soft tips and hard tips.

The soft pen tips are installed on the pens by default.

• If the soft tip gets dirty or damaged, it becomes less responsive. Replace it with a new one supplied with the product.

• If the soft tip is hard to use on a textured surface, replace it with the hard tip.

If the hard tip is worn down or damaged, replace it with a new one.

Replacing the Soft Pen Tip

1. Twist off the tip of the interactive pen to remove it.

2. Pull the soft tip straight out.

Run this procedure

Projection Window Cleaning

Warning: Do not use a lens cleaner that contains flammable gas. The high heat generated by the projector lamp may cause a fire.

Attention: Do not use glass cleaner or any harsh materials to clean the projection window and do not subject the projection window to any impacts; otherwise, it could be damaged.

Is the projection window clean?

Upload a photo of the cleaned projection window

Sign off on the cleaning of the projection window

Run this procedure

Air Filter Replacement

Warning: Ensure the projector is turned off and unplugged before starting the procedure.

Is the air filter torn or damaged?

If the air filter is not damaged, stop the procedure.

Did you slide the air filter cover latch and open the air filter cover?

Did you pull the air filter out of the projector?

Dispose of used air filters according to local regulations.

Did you place the new air filter in the projector and push gently until it clicks into place?

Did you close the air filter cover?

Sign off on the air filter replacement

Run this procedure

Interactive Pen Battery Replacement

Warning: Make sure you read the Safety Instructions before handling the batteries.

Pen indicator flashes when you press the button on the side of the pen?

If pen indicator does not flash, the battery has run out and needs to be replaced.

Remove the battery cover as shown.

Battery cover removed?

Remove the old battery.

Old battery removed?

Insert the battery with the + and - ends facing in the correct direction.

Battery inserted correctly?

Run this procedure

Projector Case Cleaning

Warning: Turn off the projector and unplug the power cord before cleaning

Projector turned off and unplugged?

Use a soft, dry, lint-free cloth to remove dust or dirt

Dust and dirt removed?

For stubborn dirt, use a soft cloth moistened with water and mild soap

Stubborn dirt removed?

Do not use wax, alcohol, benzene, paint thinner, or other chemicals. These can damage the case. Do not use canned air, or the gases may leave a flammable residue.

Sign off on the projector case cleaning

Run this procedure
