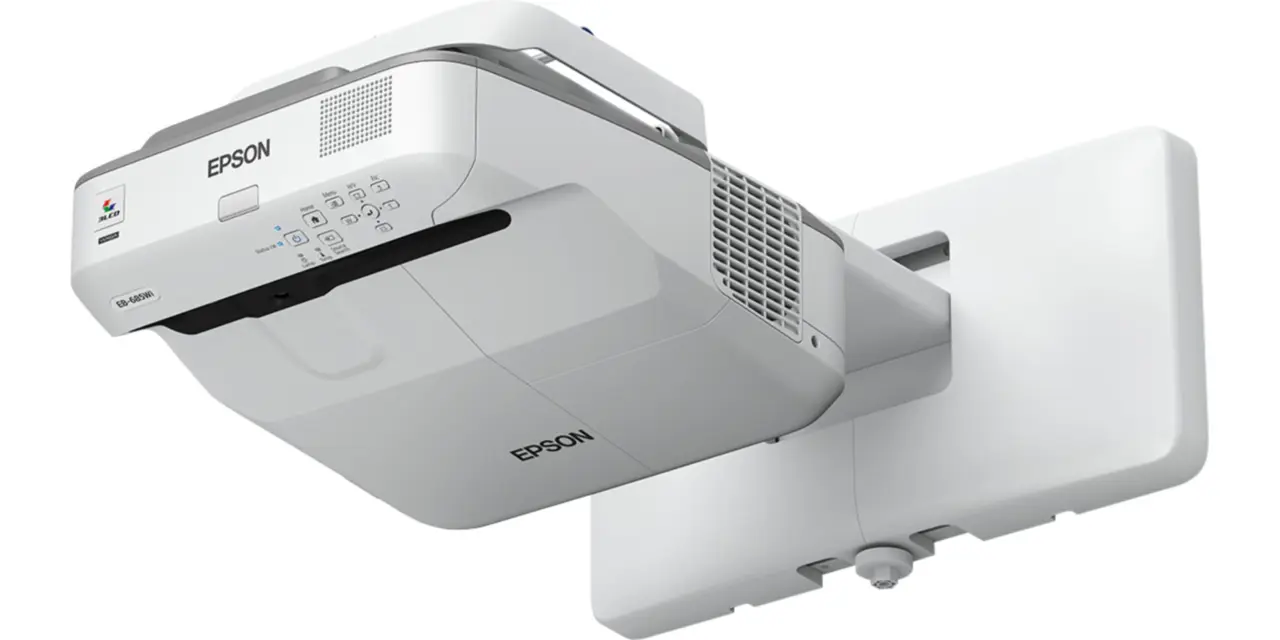

Epson Multimedia Projector EB-695Wi

Replacing the Interactive Pen Tip

Two interactive pens come with two types of pen tips, soft tips and hard tips.

The soft pen tips are installed on the pens by default.

• If the soft tip gets dirty or damaged, it becomes less responsive. Replace it with a new one supplied with the product.

• If the soft tip is hard to use on a textured surface, replace it with the hard tip.

If the hard tip is worn down or damaged, replace it with a new one.

1. Twist off the tip of the interactive pen to remove it.

2. Pull the soft tip straight out.

The projector monitors the number of hours the lamp is used and displays this information in the projector's menu system.

Replace the lamp as soon as possible when the following occurs:

• The projected image gets darker or quality declines

• A message is displayed when you turn on the projector telling you to replace the lamp (the message is displayed 100 hours before the expected end of the lamp life and appears for 30 seconds)

• The projector's power indicator is flashing blue and its lamp indicator is flashing orange.

• If you continue to use the lamp after the replacement period has passed, the possibility that the lamp may explode increases. When the lamp replacement message appears, replace the lamp with a new one as soon as possible, even if it is still working.

• Do not repeatedly turn off the power and then immediately turn it back on. Turning the power on and off frequently may shorten the lamp's operating life.

Safety Instructions: Make sure you read the Safety Instructions before handling the batteries.

Battery low? (Pen indicator flashes when you press the button on the side of the pen)

Upload a photo of the old battery before removal

New battery inserted with the + and - ends facing in the correct direction?

Warning: Check the positions of the (+) and (-) marks inside the battery holder to ensure the battery is inserted in the correct direction. If the battery is not used correctly, it could explode or leak causing a fire, injury, or damage to the product.

Battery cover replaced and clicked into place?

Sign off on the battery replacement

Air Filter and Vent Maintenance

Regular filter maintenance is important to maintaining your projector. Clean the air filer when a message appears telling you the temperature inside the projector has reached a high level. It is recommended that you clean these parts at least once every three months. Clean them more often than this if you use the projector in a particularly dusty environment. Attention

If regular maintenance is not performed, your Epson projector will notify you when the temperature inside the projector has reached a high level. Do not wait until this warning appears to maintain your projector filter as prolonged exposure to high temperatures may reduce the life of your projector or lamp.

Clean the projector's air filter if it gets dusty, or if you see a message telling you to clean it.

1. Turn off the projector and unplug the power cord.

2. Slide the air filter cover latch and open the air filter cover.

3. Pull the air filter out of the projector.

4. Gently remove the dust using a small vacuum designed for computers or a very soft brush (such as a paintbrush).

Air Filter and Vent Maintenance

Is there a message telling you to clean or replace the air filter?

Is the air filter torn or damaged?

Turn off the projector and unplug the power cord.

Slide the air filter cover latch and open the air filter cover.

Pull the air filter out of the projector.

Dispose of used air filters according to local regulations.

Place the new air filter in the projector as shown and push gently until it clicks into place.
