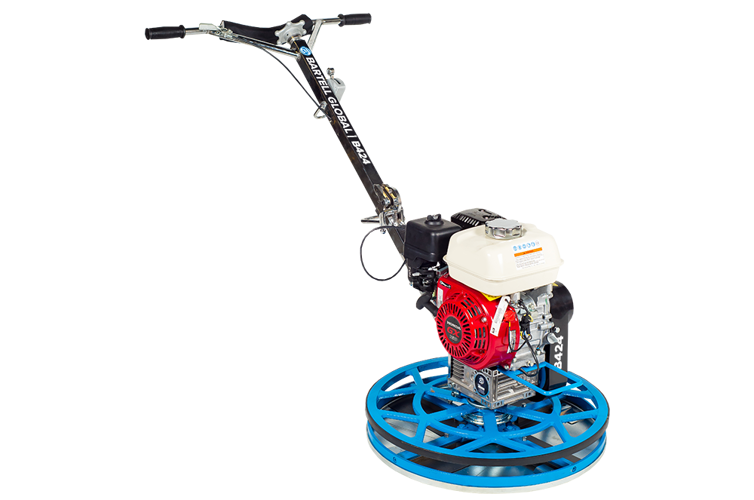

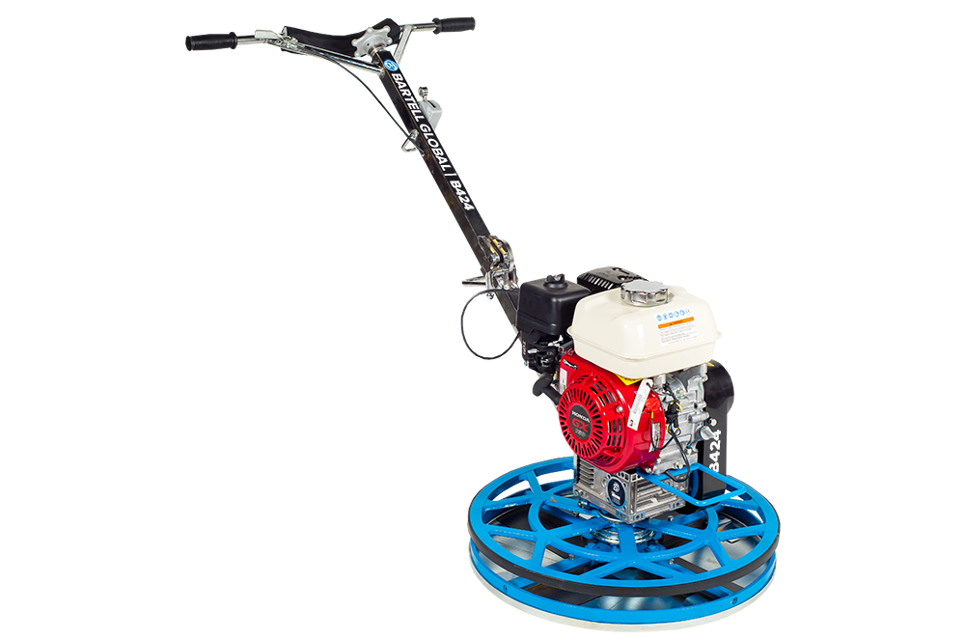

Bartell Walk-Behind Trowel B424

Check & Lubricate Pitch control

Check & Lubricate Pitch control

The trowel arm on the spider plate does not require lubrication to be added every use. However, the oil in the oil bath spider plate should be checked periodically and topped up or changed if necessary.

Check & Lubricate Pitch control

Check & Lubricate Pitch control

The trowel arm on the spider plate does not require lubrication to be added every use. However, the oil in the oil bath spider plate should be checked periodically and topped up or changed if necessary.

• The trowel arm on the spider plate does not require lubrication to be added every use.

• However, the oil in the oil bath spider plate should be checked periodically and topped up or changed if necessary.

NOTE: THE LUBRICATION SYSTEM SHOULD BE CHECKED AT LEAST ONCE PER MONTH TO ENSURE THAT THE UNIT IS FUNCTIONING PROPERLY.

1. First remove the set screw that holds the trowel arm into the spider plate.

2. Add oil through the set screw hole. Very little oil is needed.

3. While rotating the trowel arm throughout its pitch direction, pull the trowel arm about half to three quarters of the way out of the spider plate. This should be done about half dozen times.

- Doing this releases any pressure that may have built up in the chamber that holds the arm and the oil. The pressure will release through the oil grooves and through the vacant bolt hole. Add oil if necessary.

4. Push the trowel arm back into its proper location and re-install the set screw. The trowel arm should move freely.

Check & Lubricate Pitch control

Check & Lubricate Pitch control

The trowel arm on the spider plate does not require lubrication to be added every use. However, the oil in the oil bath spider plate should be checked periodically and topped up or changed if necessary.

Check & Lubricate Pitch control

Check & Grease Spider plate assembly

The trowel arm on the spider plate does not require lubrication to be added every use. However, the oil in the oil bath spider plate should be checked periodically and topped up or changed if necessary.
