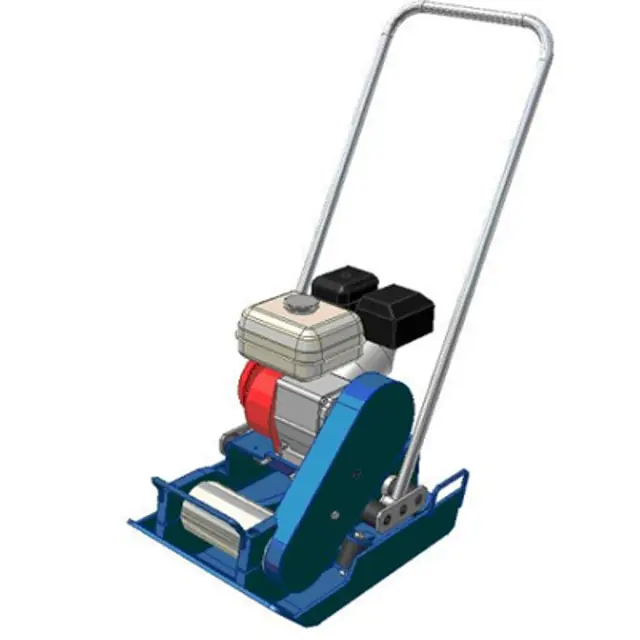

Bartell Vibratory Plate Compactor B1824-H

Create an account to install this asset package.

Maintenance Plans for Bartell Vibratory Plate Compactor Model B1824-H

Integrate maintenance plans directly into your work orders in MaintainX.

12 Monthly / 400 Hourly Vibratory Plate Compactor Maintenance

General Inspection:

Check guards

Check warning stickers

Test run: Check operation;Engine:

Check engine oil level. Lubrication – Always check engine oil regularly. Use proper engine oil as recommended. Fill crankcase to levels as recommended in manufacture’s engine manual.

Change engine oil. Keep engine oil clean, change accordingly.

Replace engine oil filter

Clean oil cooler

Clean cooling fins

Run this procedure

Initial 25 Hours Plate Compactor Check

The initial service for your compactor should be performed after 25 hours of use, at which time your mechanic (or authorized repair shop) should complete all of the recommended checks in the schedule table. The chart on page 6 (six) is handy for keeping a record of the maintenance performed and the parts used for servicing your compactor.

General Inspection:

Check guards

Check warning stickers

Test run: Check operation

Engine:

Check engine oil level. Lubrication – Always check engine oil regularly. Use proper engine oil as recommended. Fill crankcase to levels as recommended in manufacture’s engine manual.

Check and clean air cleaner. Air Cleaner - Keep air filter clean at all times. Wash away dust and debris using a non-oil based cleaning solvent. Let the filter dry before re-installing.

Check air intake line

Run this procedure

Belt Tension Maintenance

BELT TENSION - IMPORTANT!

If there is excessive belt play, there will be a decrease in the impact force and erratic vibration, which could cause machine damage.

Measure the belt play

Is the belt play within the normal range (1/2\ to 5/8\")?"

When adjusting the belt make sure that the clutch is in alignment with exciter pulley.

Is the clutch in alignment with exciter pulley?

Tighten all engine mount bolts, adjust the two engine-stop bolts, and tighten lock nuts.

Are all engine mount bolts tightened?

Are the two engine-stop bolts adjusted?

Run this procedure

9 Monthly / 300 Hourly Vibratory Plate Compactor Maintenance

General Inspection:

Check guards

Check warning stickers

Test run: Check operation

Engine:

Check engine oil level. Lubrication – Always check engine oil regularly. Use proper engine oil as recommended. Fill crankcase to levels as recommended in manufacture’s engine manual.

Change engine oil. Keep engine oil clean, change accordingly.

Clean oil cooler

Clean cooling fins

Run this procedure

3 Monthly / 100 Hourly Vibratory Plate Compactor Maintenance

General Inspection:

Check guards

Check warning stickers

Test run: Check operation

Engine:

Check engine oil level. Lubrication – Always check engine oil regularly. Use proper engine oil as recommended. Fill crankcase to levels as recommended in manufacture’s engine manual.

Change engine oil. Keep engine oil clean, change accordingly.

Clean oil cooler

Clean cooling fins

Run this procedure
