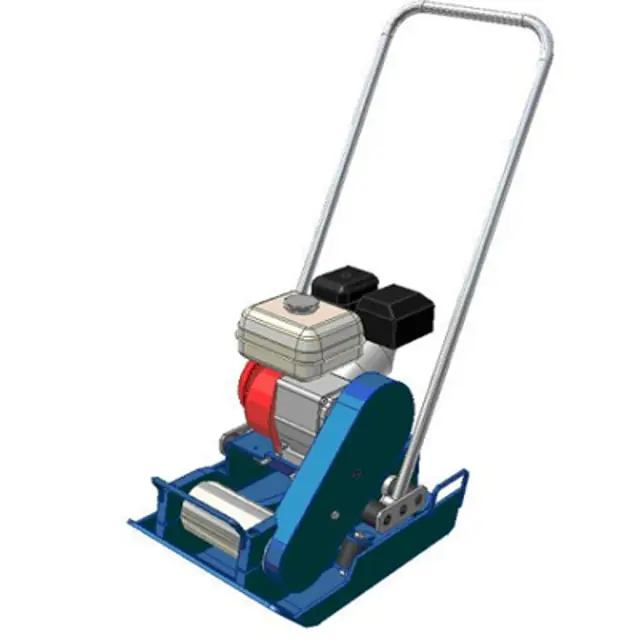

Bartell Vibratory Plate Compactor B1821-L

If there is excessive belt play, there will be a decrease in the impact force and erratic vibration, which could cause machine damage.

The normal belt play should be 1/2\ to 5/8\" which is attained by depressing the top section of the belt at the belt guard mounting bracket location."

Check if the belt play is within the normal range

When adjusting the belt make sure that the clutch is in alignment with exciter pulley.

Check if the clutch is in alignment with exciter pulley

Tighten all engine mount bolts, adjust the two engine-stop bolts, and tighten lock nuts.

Check if all engine mount bolts are tightened

Check if the two engine-stop bolts are adjusted

Check engine oil level. Lubrication – Always check engine oil regularly. Use proper engine oil as recommended. Fill crankcase to levels as recommended in manufacture’s engine manual.

Change engine oil. Keep engine oil clean, change accordingly.

Check engine oil level. Lubrication – Always check engine oil regularly. Use proper engine oil as recommended. Fill crankcase to levels as recommended in manufacture’s engine manual.

Change engine oil. Keep engine oil clean, change accordingly.

Check and clean air cleaner. Air Cleaner - Keep air filter clean at all times. Wash away dust and debris using a non-oil based cleaning solvent. Let the filter dry before re-installing.

Check engine oil level. Lubrication – Always check engine oil regularly. Use proper engine oil as recommended. Fill crankcase to levels as recommended in manufacture’s engine manual.

Change engine oil. Keep engine oil clean, change accordingly.

Regular service according to the schedule above will prolong the life of the plate compactor and prevent expensive repairs.

Failure to have your vibratory plate compactor regularly serviced and properly maintained in accordance with the manufacturer’s instructions will lead to premature failure and void the warranty.

Maintenance after each use: Engine:

Check engine oil level. Lubrication – Always check engine oil regularly. Use proper engine oil as recommended. Fill crankcase to levels as recommended in manufacture’s engine manual.

Check and clean air cleaner. Air Cleaner - Keep air filter clean at all times. Wash away dust and debris using a non-oil based cleaning solvent. Let the filter dry before re-installing.;
