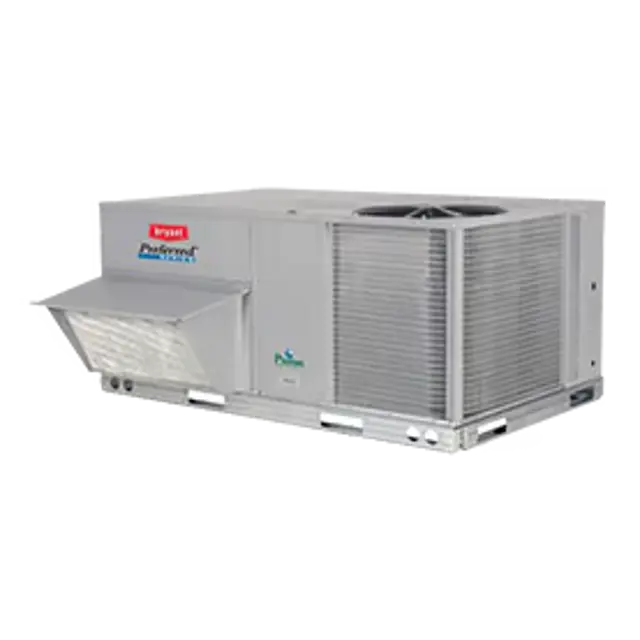

BRYANT Gas Heat Rooftop Package 581JE24D

Controller Alarm Test Procedure

Press the controller’s test/reset switch for seven seconds.

Verify that the controller’s Alarm LED turns on.

Reset the sensor by pressing the test/reset switch for two seconds.

Verify that the controller’s Alarm LED turns off.

Is the controller functioning as expected after the test?

Describe any issues encountered during the test.

Turn the key switch to the RESET/TEST position for seven seconds

Verify that the test/reset station’s Alarm LED turns on

Reset the sensor by turning the key switch to the RESET/TEST position for two seconds

Verify that the test/reset station’s Alarm LED turns off

Return air filter replacement completed

Outdoor hood inlet filters cleaned

Fan shaft bearing locking collar tightness checked

Turn off all electrical power to the unit and use approved lockout/tagout procedures on all electrical power sources.

Remove the cover on the motor connection box.

Disconnect all electrical leads to the motor.

Loosen the two jack bolt jamnuts on the motor mounting bracket.

Turn the two jack bolts counterclockwise until the motor assembly moves closer to the blower pulley.

Remove the V-belt from the blower pulley and motor pulley.

Loosen the four mounting bracket bolts and lock washers.

Recover all refrigerant from the system using a Puron (R410) gauge set

Remove the filter drier from the line using a tubing cutter

Do not use a torch to remove the old filter drier

Sweat a new replacement filter drier into the refrigerant line

Re-charge the refrigerant system

Check that all tools are accounted for

Verify system is operating correctly after replacement

Describe any issues encountered during the procedure
