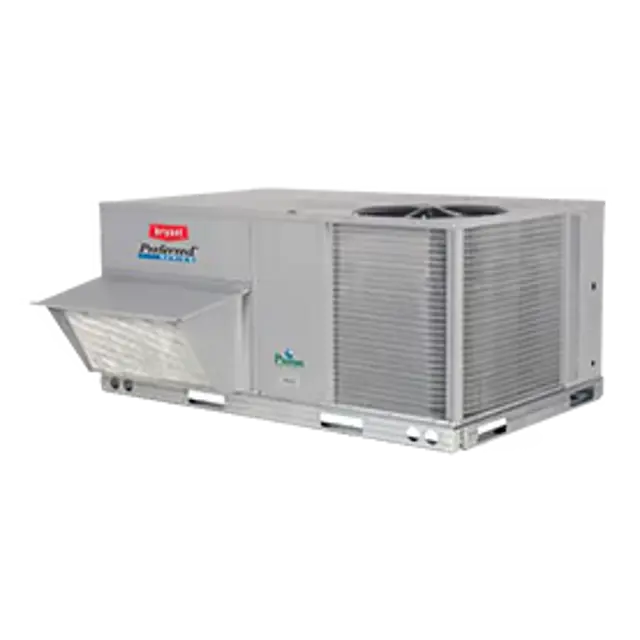

BRYANT Gas Heat Rooftop Package 581JE20M

Hold the test magnet where indicated on the side of the sensor housing for seven seconds.

Verify that the sensor’s Alarm LED turns on.

Reset the sensor by holding the test magnet against the sensor housing for two seconds.

Verify that the sensor’s Alarm LED turns off.

Is the sensor functioning as expected after the test?

Describe any issues encountered during the test.

Check the tightness of mounting bolts

Verify condenser fan blade positioning

Inspect control box cleanliness and wiring condition

Measure refrigerant charge level

Record evaporator blower motor amperage

Check the following components for cleanliness and condition

Measure the gas manifold pressure

Record the heating temperature rise

Is the heating system operating within normal parameters?

Describe any issues found during the inspection

Apply the appropriate lockout/tagout procedures

Remove the condenser-fan assembly (grille, motor, and fan)

Shut off all electrical power supply to the unit and install a lockout tag.

Close the manual gas shutoff valve located on the gas supply line.

Remove the manifold pressure tap plug from the manifold and connect a pressure gauge or manometer.

Open the manual shutoff valve, then turn on the unit main gas valve.

Set the room thermostat to call for heat.
