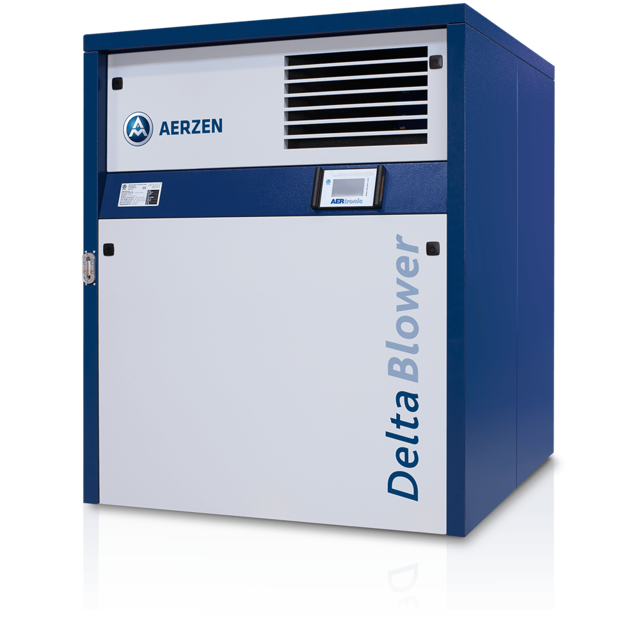

Aerzen Blower GM4S

8.2.1 Maintenance schedule for normal operation

Maintenance schedule for normal operation

Loosen the tensioning seals or the tensioning screws, depending on the silencer design

Check for correct operation, correct movability, and exact alignment

Confirm the valve can be moved and closes correctly

Attach the silencer cover and close it after the test

Remove the side-mounted sealing screws

Performing checks after commissioning — After the first 3 operating hours

Check that all components are in place and functioning

Maintenance schedule for normal operation — Weekly

Check the lube oil level and correct if necessary

Oil Level Too High — Version with Oil System

Allow the lube oil to cool down to ambient temperature

Observe the volume of the waste oil and have a receptacle ready

Open the oil opening on the oil filling container

Feed the drain hose into the receptacle

Remove the sealing cap from the drain valve and twist the drain hose onto the drain valve

Guide excess lube oil into the receptacle

Maintenance schedule for normal operation

Check flexible pipe connections on the discharge and intake sides for tightness

Replace flexible pipe connections if necessary

Checking intake-side pipelines for tightness

Check pipelines for tightness (visual inspection)

Replace seals or bushing if there are leaks

Reinforce the pipelines if necessary

Disassemble leaking pipe connections
