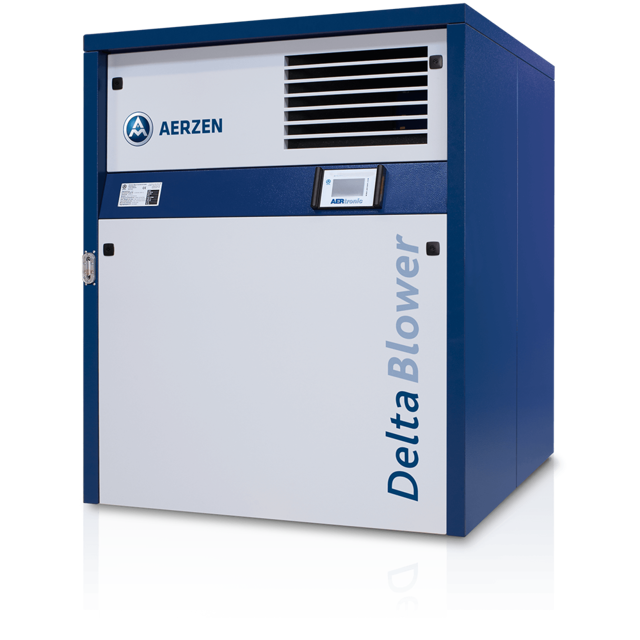

Aerzen Blower GM25S

Maintenance schedule for normal operation — Weekly

Check the lube oil level and correct if necessary

Oil Level Too High — Version with Oil System

Allow the lube oil to cool down to ambient temperature

Observe the volume of the waste oil and have a receptacle ready

Open the oil opening on the oil filling container

Feed the drain hose into the receptacle

Remove the sealing cap from the drain valve and twist the drain hose onto the drain valve

Guide excess lube oil into the receptacle

Maintenance schedule for normal operation

Check flexible pipe connections on the discharge and intake sides for tightness

Replace flexible pipe connections if necessary

Checking intake-side pipelines for tightness

Check pipelines for tightness (visual inspection)

Replace seals or bushing if there are leaks

Reinforce the pipelines if necessary

Disassemble leaking pipe connections

Maintenance schedule for normal operation

Replace with new Delta Lube 06 oil

8.2.1 Maintenance schedule for normal operation — Weekly

Check for damage and thorough stability

Remove dirt from the belt guard

Is the belt guard fastener tight?

Is there any lubricant bleeding out of the drive motor?

Remove any dirt from the outer belt guard

Is the belt guard sufficiently stable and undamaged?

Performing checks after commissioning

Check and correct oil level if necessary

Check and correct alignment of the sheaves if necessary

Check and correct oil level if necessary

Check and correct alignment of the sheaves if necessary
