An asset hierarchy is a logical, multi-level index of all your maintenance equipment, machines, and components. It provides essential asset data and shows how they connect and work together. Without a clear asset hierarchy, maintenance teams waste time hunting for information, planners can't find asset IDs, and managers lose track of costs. In this article, you'll learn how to build an effective asset hierarchy, understand its structure through real-world examples, and discover the key benefits it brings to maintenance operations and resource management.
Key takeaways
- An asset hierarchy organizes equipment in a parent-child structure, making maintenance data accessible and meaningful.
- A well-built hierarchy allows for faster troubleshooting, accurate cost tracking, and improved preventive maintenance.

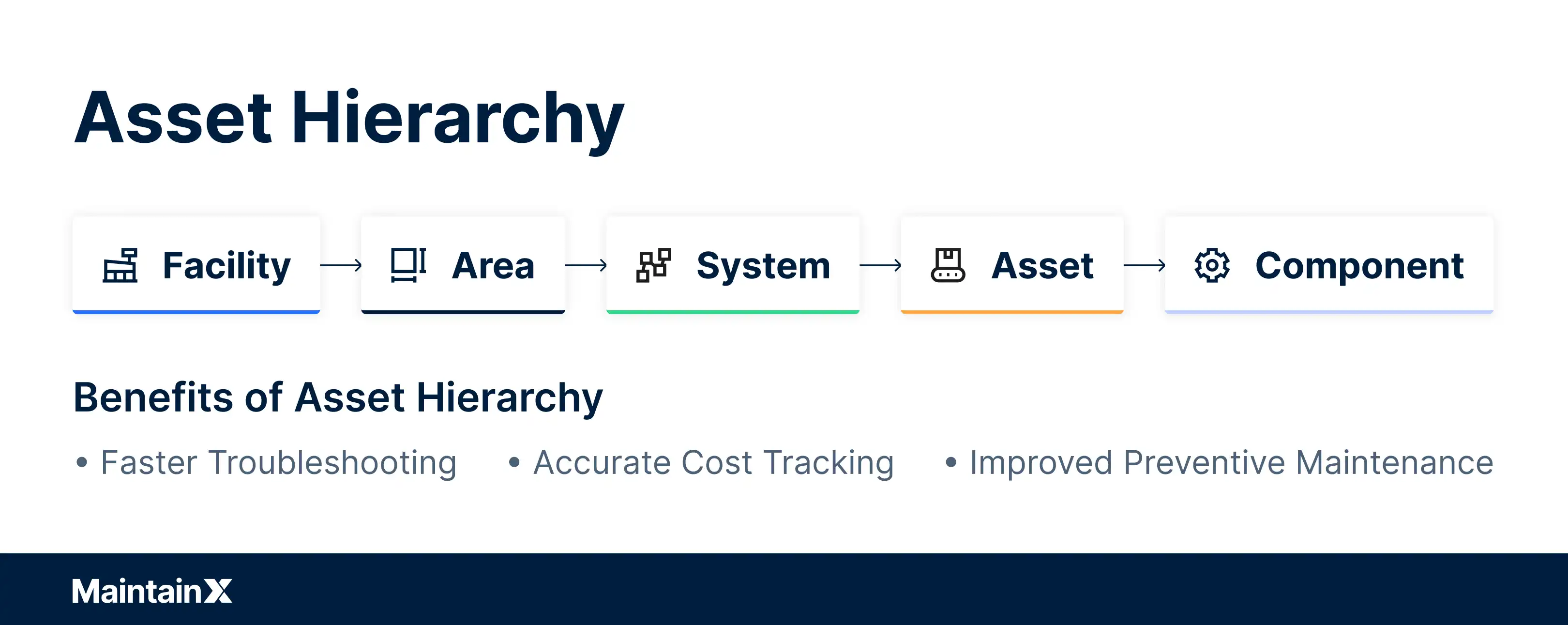

- The ideal structure typically uses 4-5 levels (Facility → Area → System → Asset → Component) with consistent naming.
- Setting up an asset hierarchy requires thorough inventory, standardized naming, and proper CMMS implementation.
- Regularly maintain your hierarchy to keep it accurate as your facility evolves.
What an asset hierarchy looks like (with real-world examples)
An asset hierarchy follows a tree structure from general categories at the top to specific components at the bottom, encompassing all the assets in your facility. This organized system creates parent-child relationships between your equipment, showing how complex machines are composed of smaller parts, and groups assets by location or function.
Having a clear structure in your computerized maintenance management system (CMMS) makes everyday maintenance much more efficient. You can quickly locate any asset with just a few clicks instead of scrolling through an unstructured list. The system nests work orders under the correct assets, which means no more confusion about which "Pump #3" the job refers to, and reliability and maintenance data stays tied to the right equipment.
Here's a real-world example: Imagine a bottling plant with a conveyor issue. Using a structured hierarchy, you can trace the problem step-by-step:
- Plant (site): Start at the bottling plant, then drill down to the specific area (packaging department).
- System (line): Navigate to the bottling line system that handles filling and packaging.
- Asset (machine): Locate the particular conveyor belt machine reporting an issue.
- Component (part): Examine the conveyor's components (motor, belt, gearbox) to pinpoint the failing part.
This structured approach lets you isolate the issue logically, speed up troubleshooting, and log repairs at the correct level of the hierarchy.
How to build an asset hierarchy that actually works
Creating an effective hierarchy requires careful planning and consistency. Follow these key steps:
1. Inventory and categorize assets
Start by taking stock of all your equipment, machines, and significant components, which will facilitate data analysis. Use equipment lists, maintenance manuals, inspection reports, and even nameplates to gather information. As you inventory assets, categorize and prioritize them rather than just making one long list.
Identify the assets that matter most to your operations: the critical machines whose failure would disrupt operations the most, their key components, and other widely used equipment. It's better to build a focused hierarchy with detailed information on critical assets than an extremely large one with many rarely used items.
2. Define hierarchy levels (facility, area, equipment, component)
Next, outline your hierarchy structure by defining its levels. Most organizations use a 4-5 level hierarchy:
- Level 1 – Facility (or site)
- Level 2 – Area or department
- Level 3 – System or line
- Level 4 – Equipment unit
- Level 5 – Component
Balance the number of levels to keep the hierarchy practical. Too few levels might lump too many items together and lose clarity; too many levels will make the hierarchy cumbersome. Best practices suggest using no more than 2-3 sub-levels under each asset.
Consider using established frameworks like ISO 14224, which provides a well-known taxonomy for asset hierarchy levels that you can adapt to your business needs.
3. Standardize naming and classifications
Develop standard naming conventions and classification codes for your assets. Consistent naming prevents duplicate entries and confusion. Use recognizable data categories for asset types rather than company-specific jargon.
For individual assets, create a unique identifier system that conveys meaningful information. For example, "Conveyor-2-3" clearly indicates the asset type (conveyor), that it's the 2nd conveyor of that type, and it's at location #3.
Follow these naming best practices:
- Make names logical, consistent, and unique across all levels.
- Avoid special characters and overly long names.
- Plan for growth in your naming scheme.
- Avoid duplicate names or codes. Each asset should appear only once.
Also standardize asset classifications and attributes (model, manufacturer, criticality). Document these conventions in a reference guide and train your team so everyone follows the same system.
4. Load it into a CMMS or management system
Implement your hierarchy in your CMMS or enterprise asset management (EAM) software. Most modern systems provide tools to build out an asset tree where you create top-level parent assets and then attach child assets in descending order.
It's ideal to establish your asset management during a CMMS implementation or major update. Before loading, confirm you're only including assets you truly want to track. Be thorough when uploading details for each asset, populate fields like category, manufacturer, model, and serial number, as these will be valuable for reporting and decision-making.
Once you’ve loaded your hierarchy, the CMMS will enforce consistency by requiring users to select from existing assets when logging work, preventing rogue entries or misnamed duplicates.
Maintain and improve your asset hierarchy over time
Building an asset hierarchy isn't a one-time process. Equipment and operations evolve: you add new machines, decommission old ones, and reconfigure production lines. To keep your hierarchy valuable, you must maintain it regularly.
Assign a specific person or team as the owner(s) of the asset hierarchy data, which is typically a maintenance planner, asset manager, or reliability engineer. They keep the hierarchy current by adding new equipment in the correct spot and removing or updating retired equipment.
Schedule regular audits (quarterly or biannually) to verify that:
- All new assets are entered, and disposed assets are removed
- Parent-child relationships still reflect reality
- Naming conventions and data fields are consistently applied
Keeping the structure accurate helps prevent missing important maintenance tasks or losing track of costs through misassociated work.
Why a solid asset hierarchy makes maintenance better
A well-built asset hierarchy delivers tangible benefits to maintenance operations, leading to better decisions in resource allocation. It also serves as a powerful framework for planning and reporting, allowing teams to generate meaningful insights across equipment categories and maintenance activities.
Full visibility and proactive planning
Plan preventive maintenance for every piece of equipment with a complete map of your assets, so nothing slips through the cracks. Maintenance managers can see the big picture of upcoming work and schedule tasks optimally. A strong hierarchy allows you to reduce emergency breakdowns more easily with preventive maintenance scheduling.
Faster troubleshooting and root-cause analysis
When failures occur, technicians can quickly navigate the hierarchy to understand the context of a failing component, both the larger system it's part of and its sub-components. This structured process lets you systematically check related components to pinpoint root causes faster, speed up repairs, and reduce repeat failures.
Accurate cost tracking and resource allocation
With costs logged against specific assets, you can track maintenance expenses with precision. This helps identify which components or machines incur the most frequent repairs and the highest costs, making it easier to justify replacements or upgrades. You can also improve inventory management by analyzing part usage per asset, reducing unnecessary expenses from overstocking.
Improved documentation, compliance, and analysis
A solid hierarchy lets you file maintenance records, inspection reports, and performance logs correctly for an accurate equipment history. This is invaluable for compliance audits and supports advanced maintenance strategies like predictive analytics by allowing you to spot patterns across similar equipment.
Streamline maintenance with a structured asset hierarchy
Investing in a solid asset hierarchy brings order to complex operations, allowing your team to work smarter and refine your maintenance practices. Everything from scheduling PMs to troubleshooting problems becomes more straightforward when your assets are logically organized.
By using a CMMS with well-crafted asset management, you'll achieve better reliability, lower downtime, and gain deeper insights into your maintenance operations, benefits that directly impact your bottom line.
Ready to organize your maintenance operations? MaintainX makes it easy to build and maintain your asset hierarchy while providing powerful work order management.
FAQs on asset hierarchy
What is the asset hierarchy structure?
An asset hierarchy structure is a parent asset-child asset organization of equipment and components, typically using 4-5 levels: Facility → Area → System → Equipment → Component. This pyramid-like structure organizes assets from the largest (facility) down to the smallest replaceable parts, showing how equipment relates to systems and locations.
What is the ISO standard for asset hierarchy?
ISO 14224 is the international standard for asset hierarchy structures. Initially developed for the oil and gas industry, it is widely applied across sectors. It specifies a nine-level taxonomy from industry down to individual parts, providing a standardized framework for classifying and organizing equipment.
What is the equipment hierarchy standard?
The equipment hierarchy standard most commonly referenced is ISO 14224, which establishes best practices for organizing assets in a logical structure. While originally designed for the petroleum and natural gas industries, it's been adapted across sectors. ISO 14224 typically recommends a structure where equipment units contain subunits, which contain components, which contain parts, all organized by location and function.
