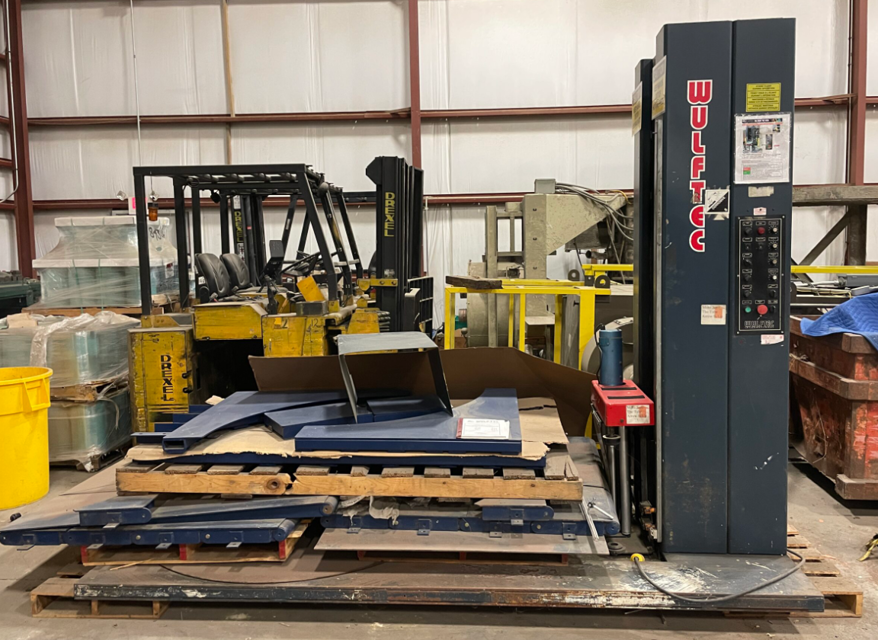

Wulftec Heavy‑Duty High‑Profile Pallet Wrapper WHP-300

Warning: This procedure is for trained personnel only

Four (4) bolts on the side of the drive box slackened

Tension adjuster bolt backed off

Chain link undone and replaced with a new one (#50 ANSI) of the appropriate length

Chain tension adjusted by turning the adjuster clockwise

Four (4) bolts on the drive box that secure the transmission tightened

Sign off on the chain replacement

Warning: This procedure requires trained personnel with PPE!

Is the oil bath filled with EP 80 gear oil?

If not, position the outer filler plug in line with the punch mark located on the main frame and remove the two 1/4\ pipe plugs with a 1/4\" Allen key."

Check the oil level with a dipstick.

The minimum level is 1-1/4\ and the maximum level is 1-7/8\"."

Did you replace the pipe plug after filling the oil baths?

Does the cam follower rotate smoothly?

If a cam follower fails to rotate smoothly, it must be replaced with a new one.

Sign off on the cam followers check

Ensure that dancer bar is fully retracted to home position

Install or adjust cam with an angle of 60° approx

Adjust the sensor so it barely touches Cam

At maximum dancer bar travel, make sure that sensor to cam gap is approx. 8mm (5/16\)"

If necessary repeat step 3, slightly modifying the angle to meet step 7 requirements

Make sure that minimum sensor to cam gap is not more than .005\ -. 010\""

Warning: Ensure the machine is powered off before starting the procedure.

Is the table jogged until the cam is aligned with the hole?

Enter the gap between the sensor and the cam (should be about 1/8 of an inch)

Are the two nuts (one on top of the bracket and one on the bottom) tightened?

Upload a photo of the adjusted sensor

Sign off on the sensor adjustment

Warning: This procedure requires trained personnel with PPE!

Is the outer filler plug in line with the punch mark?

If not, align the outer filler plug with the punch mark.

Were the two 1/4\ pipe plugs removed with a 1/4\" Allen key?"

The minimum level is 1-1/4\ and the maximum level is 1-7/8\"."

Did you replace the pipe plug after filling the oil baths?

Does the cam follower rotate smoothly?

If not, replace the cam follower.
