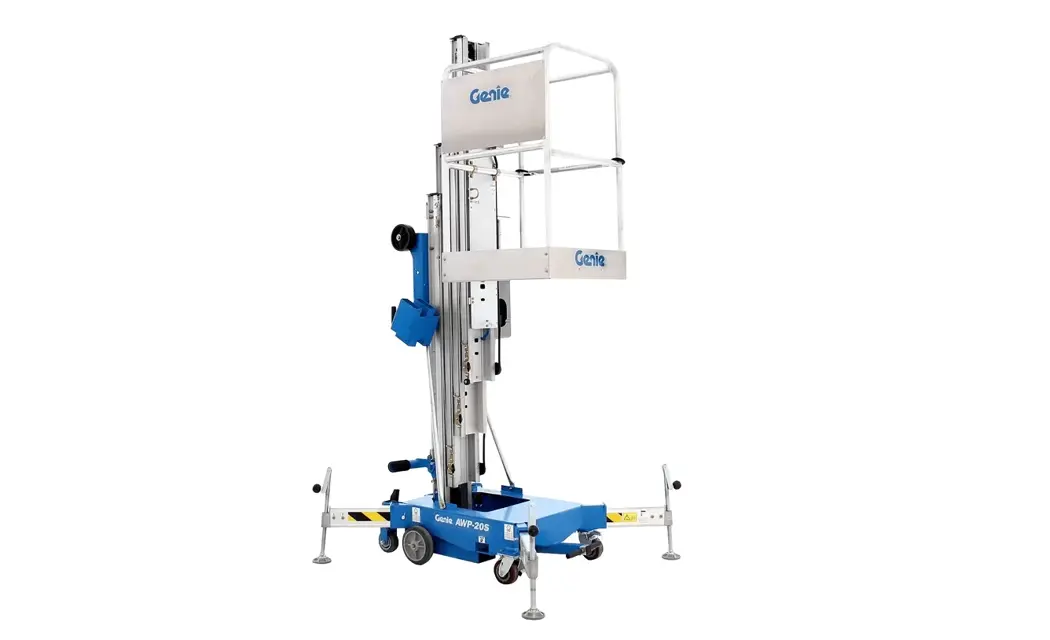

Genie Lift Mast AWP-20S

Check the sight gauge on the side of the hydraulic reservoir.

Is the hydraulic oil level visible in the middle of the sight gauge?

Sign off on the hydraulic oil level check

Warning: Contact with hot or live circuits could result in death or serious injury. Remove all rings, watches and other jewelry.

Bodily injury hazard. Batteries contain acid. Avoid spilling or contacting battery acid. Neutralize battery acid spills with baking soda and water.

Protective clothing and eye wear worn

Battery acid level replenished with distilled water to the bottom of the battery fill tube. Not overfilled.

Warning: Improperly inflated tires can affect machine handling.

Enter the air pressure in the front left tire

Enter the air pressure in the front right tire

Enter the air pressure in the rear left tire

Enter the air pressure in the rear right tire

All tires have proper air pressure?

Sign off on the tire pressure check

Position the machine on a firm surface directly below the desired work area

Connect to the appropriate power source

Insert the key and turn to platform control

Pull out the red Emergency Stop button to the on position at the ground controls

Twist to release the red Emergency Stop button at the platform controls

Select an outrigger and slide it into a base socket until the outrigger lock pin snaps into place. Adjust the outrigger to level the machine and raise the base casters slightly off the ground. Level the machine using only the outriggers

Check the interlock display lights at the ground controls. Confirm that the corresponding light is on

Use the bubble level and adjust the leveling jacks until the machine base is level

Check the air filter/regulator canister for any water accumulation

Is water visible in the canister?

If water is visible, proceed to the next step. If not, the procedure is complete.

Loosen the drain plug at the bottom of the canister and allow the water to drain out

Sign off on the air filter/regulator canister check
