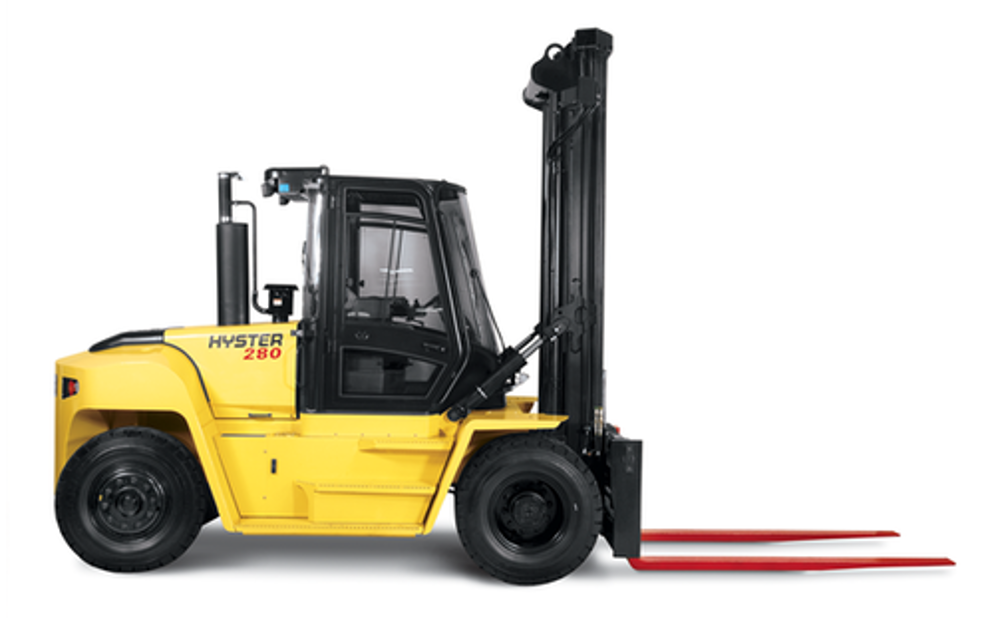

Hyster Forklift H280HD

1. Retract attachment to 20-ft position. Shut down engine. See Figure 1 and Figure 8.

2. Disconnect hydraulic lines at chain end (42) and put caps on open lines. Disconnect electrical plugs at chain end.

3. Remove bracket (25) holding chain and hose clamp closest to chain.

4. Start engine. Extend extension beam approximately 1200 mm (4 ft) allowing removal of pin at rod end of extension cylinder.

5. Remove snap ring and pin from rod end of extension cylinder.

6. Retract attachment to 20-ft position. Shut down engine.

7. Using a crane or lift truck, pull extension beam out approximately 1200 mm (4 ft). Carefully guide hose/cable chain into center frame.

8. Remove two bolts holding interface box and reposition box to prevent damage.

Inspect main attachment components for damage, cracks, and distortion

Inspect signal and control systems for correct operation

Check all hydraulic cylinders for leaks and reseal if necessary

Inspect all hydraulic hoses for damage and leakage. Replace any damaged or leaking hoses

Sign off on the forklift maintenance

The lifting hooks are safety critical components due to the fact that it is the hook that carries all the load when picking up and carrying a container. Hooks are a wearing part and should be inspected for wear and or damage on a regular basis.

1. Check hook for cracks. Replace hook if damaged.

2. Check inside angle of hook. New hooks have 22 mm (0.87 in.) of material between flat portion of hook and top of hook. The hook should be replaced if worn area leaves less than 15 mm (0.59 in.) from start of wear area to flat portion of hook. See Figure 9 and Figure 10.

3. Check wear area of hook where corner casting of container is carried. This area should be inspected and when wear is more than 5% of original thickness, hook should be replaced. See Figure 9 and Figure 10.

4. Check tightness between nuts and threads of hook. Hook should be replaced if threads of hook become worn. See Figure 9.

5. The pin that hook is secured through can wear and should be replaced if excess play is discovered.

Wear Pads for Main Beams and Extension Beams - Check and Lubricate

Check for wear of 14 nylon pads and replace before metal-to-metal contact between carriage and frame occurs.

Apply grease to new pads or in cases where there is screeching noise.

Upper Sideshift Slider Pads - Check

Check for wear of nylon pads and replace before metal-to-metal contact between carriage and frame occurs.

Twist Lock Housings Model 553 - Check

Check for wear and possible damage of twist lock and twist lock housing.

NOTE: To gain access to the far end slide pads on end beam, the vertical end beam needs to be removed.

Loosen bolts and brackets holding slide pads in place. See Figure 13.

Remove slide pad and replace if worn.

Mount bracket and bolts as necessary to hold pads in place.

Sign off on the slide pad replacement
