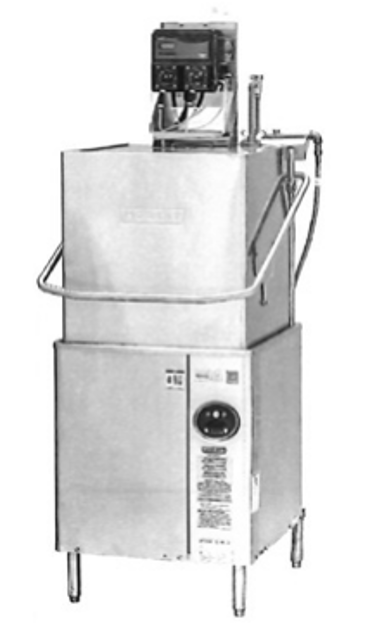

Hobart Dishwasher AM15SCB

WARNING: Disconnect the electrical power to the machine (both dishwasher and booster if applicable) and follow lockout / tagout procedures. Be sure all circuits are disconnected.

Upper and lower wash and rinse arms should turn freely and continue turning for a few seconds after being whirled by hand.

Check if there are any obstructions causing improper operation of the arms.

Is the strainer pan properly in place?

Is the strainer bucket properly in place?

If either the strainer pan or the strainer bucket is not properly in place, obstructions (such as food particles or bones) may clog the wash arm nozzles.

The wash arms are easily removed for cleaning.

To remove the lower wash arm, unscrew the hand knob and lift the rinse arm off.

The wash arm can be lifted off once the rinse arm is removed.

Clean off the dish tables into the dishwasher

Drain the machine by lifting up the drain lever (Does not apply to AM15SVL or AM15SVLT models)

Thoroughly cleanse and flush the dishwasher interior. Remove remaining soil with a soft cloth or brush and mild cleanser. Rinse again

Remove and empty the strainer bucket and pan. Wash and rinse them thoroughly

Clean the pump cover with a soft cloth or brush. Do not allow food soil to accumulate on the tank bottom or to enter the drain

Remove the overflow tube (does not apply to AM15SVL or AM15SVLT models). Wash and rinse the overflow tube inside and out

On AM15SVL and AM15SVLT models, remove the pumped drain sreen; wash and rinse inside and out
