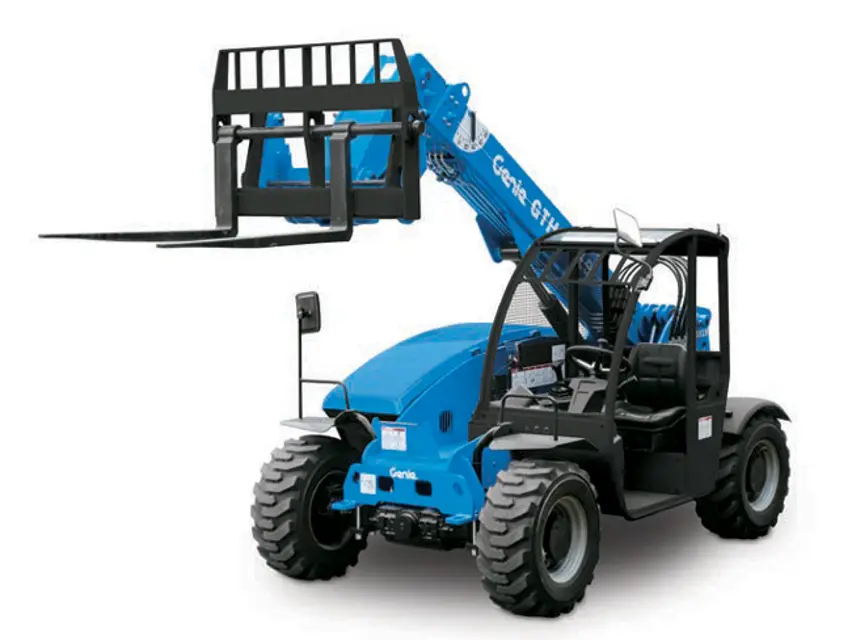

Genie Compact Telehandler GTH-1544

Create an account to install this asset package.

Maintenance Plans for Genie Compact Telehandler Model GTH-1544

Integrate maintenance plans directly into your work orders in MaintainX.

1000 Hourly Engine Maintenance

Perform Engine Maintenance – 1000 Hours

Engine specifications require that this procedure be performed every 1000 hours

Required maintenance procedures and additional engine information are available in the manufacturer's manuals

Refer to Specifications, Engine Operator and Maintenance Manuals

Deutz Models

All Models

Charge air cooler entry area - drain lube oil/condensate

Engine mounts - check

Hose clamps and hoses - check

Run this procedure

3 Monthly Battery Inspection

Warning: Contact with electrically charged circuits could result in death or serious injury. Remove all rings, watches and other jewelry.

Warning: Batteries contain acid. Avoid spilling or contacting battery acid. Neutralize battery acid spills with baking soda and water.

Battery cable connections are free of corrosion

Battery retainers and cable connections are tight

Battery separator wire connections are tight (if equipped)

Models without maintenance-free or sealed batteries

Put on protective clothing and eye wear

Specific gravity of each battery cell

Ambient air temperature

Run this procedure

3000 Hourly Engine Maintenance

Perform Engine Maintenance – 3000 Hours

Engine specifications require that this procedure be performed every 3000 hours

Required maintenance procedures and additional engine information are available in the manufacturer's manuals

Refer to Specifications, Engine Operator and Maintenance Manuals

Deutz Models

TD 2.9 L4, TCD 3.6 L4

V-rib belt and tensioning pulley - replace

Perkins Models

All Models

Run this procedure

1000 Hourly Axile Maintenance

Perform Axle Maintenance – 1000 Hours

Axle specifications require that this procedure be performed every 1000 hours

Required maintenance procedures and additional axle information are available in the manufacturer's manuals

Refer to Specifications, Operator and Maintenance Manuals

Dana Models

Negative brake - adjust

Hub oil level - change

Planetary reduction lubricating oil - change

Carraro 26.27M Models

Run this procedure

3 Monthly Hydraulic Oil Visual Inspection

Warning: This procedure requires trained personnel with PPE!

Genie specifications require that this procedure be performed quarterly

Replacement or testing of the hydraulic oil is essential for good machine performance and service life

Dirty oil and a clogged suction strainer may cause the machine to perform poorly and continued use may cause component damage

Extremely dirty conditions may require oil changes to be performed more often

For hydraulic oil specifications, refer to Specifications, Hydraulic Specifications

Before replacing the hydraulic oil, the oil may be tested by an oil distributor for specific levels of contamination to verify that changing the oil is necessary

Replace the oil when it fails the test

Refer to Maintenance Procedure, Test or Replace the Hydraulic Oil

Run this procedure
