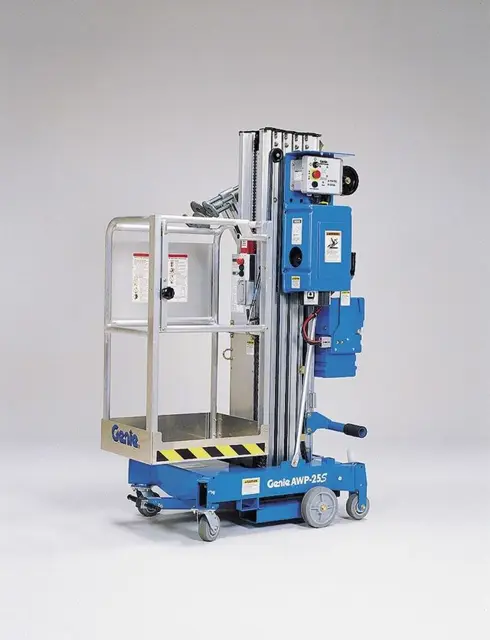

Genie Lift Mast AWP-25S

Warning: Contact with hot or live circuits could result in death or serious injury. Remove all rings, watches and other jewelry.

Bodily injury hazard. Batteries contain acid. Avoid spilling or contacting battery acid. Neutralize battery acid spills with baking soda and water.

Protective clothing and eye wear worn

Replenished with distilled water to the bottom of the battery fill tube?

Check the air filter/regulator canister for any water accumulation

Is water visible in the canister?

If water is visible, proceed to the next step. If not, the procedure is complete.

Loosen the drain plug at the bottom of the canister and allow the water to drain out

Sign off on the air filter/regulator canister check

Check the sight gauge on the side of the hydraulic reservoir.

Is the hydraulic oil level visible in the middle of the sight gauge?

Sign off on the hydraulic oil level check

Warning: Improperly inflated tires can affect machine handling.

Check each tire with an air pressure gauge.

Enter the air pressure in the tire

Is the air pressure within the proper range as stamped on the tire?

Sign off on the tire pressure check

Measure the oil level in the lubricator canister

The oil level must be within 1/2 inch / 12.7 mm from the top of the lubricator canister.

Is the oil level within the specified range?

If not, proceed to the next step.

Did you remove the oil lubricator canister from the lubricator base?

Did you fill the canister with oil?

Did you install the canister back onto the lubricator base?

Sign off on the oil level check
