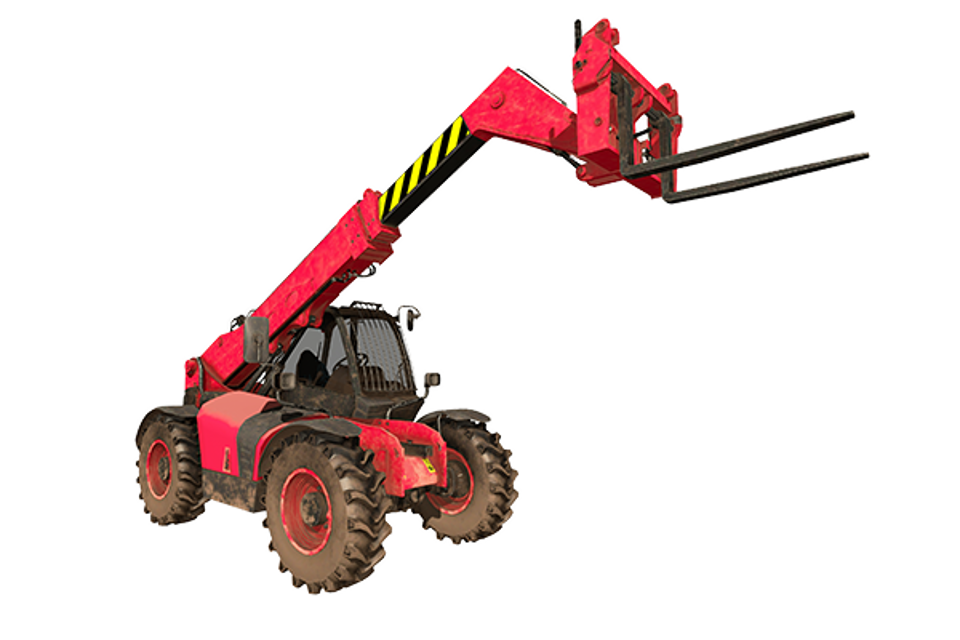

Terex Vehicle SS-636C

CHECK HYDRAULIC RETURN FILTER (GAUGE)

Extend boom cylinder at full speed

If reading is more than 25 PSI, filter element should be changed

Lower boom as low as possible as to allow access to engine compartment

- CHANGE TRANSMISSION OIL AND FILTER

- ADJUST EXTENSION -RETRACTION CHAINS

TO CHECK: Proper adjustment can be checked with a tape measure. Extend boom fully, then retract about one inch. On either side of the middle boom section estimate the center.

Place one end of the tape measure on top surface of the boom directly above estimated center.

TOLERANCE: Measurement from top surface of boom to lowest pali of extension chain should be no less than 2 3/8 inches.

TO ADJUST: If the measurement is less than 2318 inches, tighten chain anchor (A), which is located on the top, front of the large boom tube as follows:

Enter the concentration of the mixture

Is the mixture a 50/50 mixture of water and ethylene-glycol based antifreeze?

Enter the temperature of the mixture

Is the temperature of the mixture -34 degrees F?

Sign off on the coolant concentration check

Location: Filter (A), Water Separator (B)

Wipe all dirt from area surrounding filter(s)

Thoroughly clean gasket sealing surface after filter removal

Install filter according to filter manufacturer specification

Sign off on the fuel filters replacement

Operate engine until water has reached 140 degrees F

Location: Oil Filter (A), Drain Plug (B), Fill Spout (C)

Place drain pan directly beneath engine oil Drain Plug (B)

Clean area around engine Oil Filter (A)

Apply a thin film of clean oil around new filter gasket before installation
