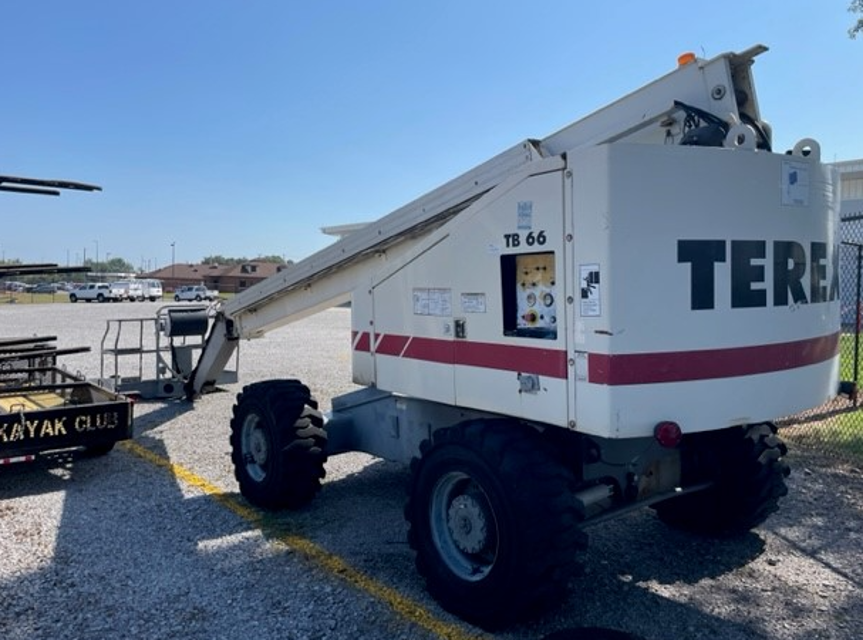

Terex Self Propelled Boom Lift TB66

Rotation/Slew Bearing Lubricated

Sign off on the maintenance procedure

For normal application, use EP 90. For applications where the lubricant must met special requirements, the manufacturer of the lubricant should be able to recommend a suitable substitute.

Initial - After 50 hours. Preferably in a loaded condition.

Subsequent - 1000 hours or (1) year whichever comes first. Higher temperatures make it necessary to change oil more frequently.

Loosen the clamp securing the cup to the air cleaner

Remove the cup and clean out any dirt or foreign matter in the cup

Reinstall the cup and tighten the clamp

Sign off on the air cleaner maintenance

Warning: Ensure the machine is turned off before starting the procedure

Open the 'pet-cock' (bleed screw) on top of the filter head

Apply a thin film of clean hydraulic fluid to the seal of the new filter

Screw the filter onto the filter head by hand until it can no longer be turned

Wipe the area clean and close the pet-cock valve

Start the engine, operate a function and check for leaks

Tighten the filter with the aid of a filter wrench only if any leaks appear

Sign off on the hydraulic filter changing
