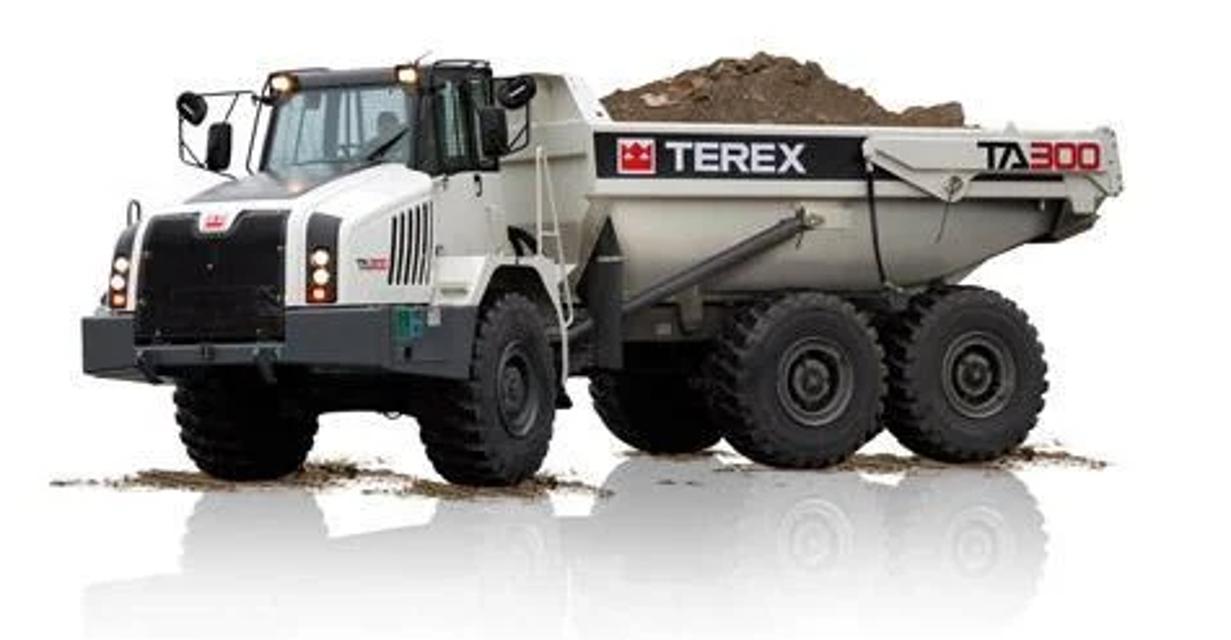

Terex Site Dumper TA300

Suspension Beam Bushin Lubricated

Steering Cylinder Pins Lubricated

Body Hinge / Tailgate Pins Lubricated

Wheel Rim Nuts Checked for torque

Cab Fresh Air Filter Inspected and cleaned if required

Panhard Rod Bearings Lubricated

Sign off on the site dumper maintenance

WARNING: Replace seat belts at least once every three years, regardless of appearance.

Replace wiper blades and top up reservoirs

Re-torque wheel rim nuts to 550 Nm (406 lbf ft.) after first 10 hours (1 day) of operation

Check torque every 250 hours (monthly) thereafter.

Steam clean the engine prior to performing any repair or service work on it, and if heavily contaminated due to prevailing site conditions.

WARNING: Electrical and electronic connections, the Engine ECM and harness connections should be protected or not directly steam cleaned when on or removed from the engine.

NOTICE: The engine and its components that are scheduled to be checked, serviced or replaced must be cleaned in accordance with the manufacturer's recommendations.

Sign off on the site dumper maintenance

Transmission Drain oil and refill with new oil

Fuel Filter/Water Separator Renew

Transmission Breather Clean if required

Transmission Internal Strainer Clean

Drive shaft Bearings Check oil level. Add if low.

Articulation Pivot Nut - Check torque

Radiator Expansion Tank - Check coolant antifreeze

Engine Mounting Bolts - Check torque

Transmission Mounting Bolts - Check torque

Engine Air Cleaner - Clean / renew filter element

Engine - Check and adjust valve clearance

Axle Mounting Bolts - Check torque

Hydraulic Oil Tank - Drain oil, remove and clean filter screen assemblies. Reinstall filter screens and refill the tank

Engine Drain oil and refill with new oil

Battery Electrolyte Check level, Add Electro if low

Differentials - Check oil level and add if low.The correct oil level is up to the rim of the oil filler and level-check hole. Refer to relevant differential section within the maintenance manual for specific details.

Planetaries - Check oil level and add if low. Oil level should be at the lower bottom edge of the thread, with the wheel hub orientated so that the oil drain plugs are positioned horizontally in the middle of the axle. Refer to relevant planetary section within the maintenance manual for specific details.;
