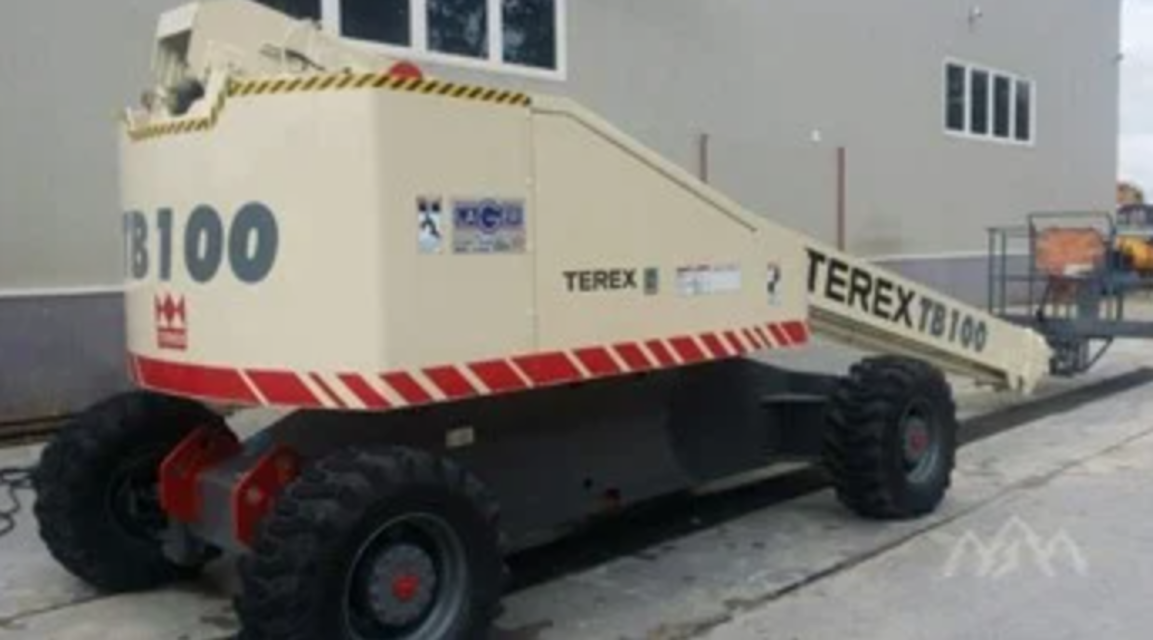

Terex Self Propelled Boom Lift TB100

Warning: This maintenance check requires trained personnel with PPE!

Enter the current hours of operation

If the current hours of operation is less than 25, replace the 3 micron filter

If the current hours of operation is between 25 and 200, replace the hydraulic return filter every 50 hours

If the current hours of operation is more than 200, replace the hydraulic return filter every 100 hours or quarterly

Sign off on the hydraulic system return line filter maintenance

Warning: Batteries produce flammable and explosive gasses. Keep electric arcs, sparks, flames, and lit cigarettes (pipes, cigars, etc.) away from batteries.

Warning: Battery acid will damage eyes or skin on contact. Always wear a face shield during battery maintenance to avoid getting acid in eyes. Always wear rubber gloves and protective clothing to keep acid off skin.

Warning: Never check the battery by placing a metal object across the posts. Serious burns or an explosion can result.

Check the colored 'eye' in the top of the battery, a green color indicates that battery electrolyte level is okay.

Water loss from the battery occurs mainly as the result of evaporation brought on by temperature rises during charging. A small amount may be lost due to gasses formed during charging. Electrolyte may be lost if the case becomes cracked or the battery tips over. Therefore, electrolyte is seldom needed.

When checking the electrolyte level, don't allow dirt to enter into the battery cells once the caps have been removed. Take particular care to avoid setting the battery-cell caps down on a dirty surface. Replace the caps immediately after checking the level.

MATERIALS AND EQUIPMENT REQUIRED

Rotation/Slew Bearing Lubricated

Sign off on the maintenance procedure

The air cleaner should be checked and cleaned on a weekly basis. To clean the air cleaner:

• Loosen the clamp securing the cup to the air cleaner.

• Remove the cup and clean out any dirt or foreign matter in the cup.

• Reinstall the cup and tighten the clamp.;
