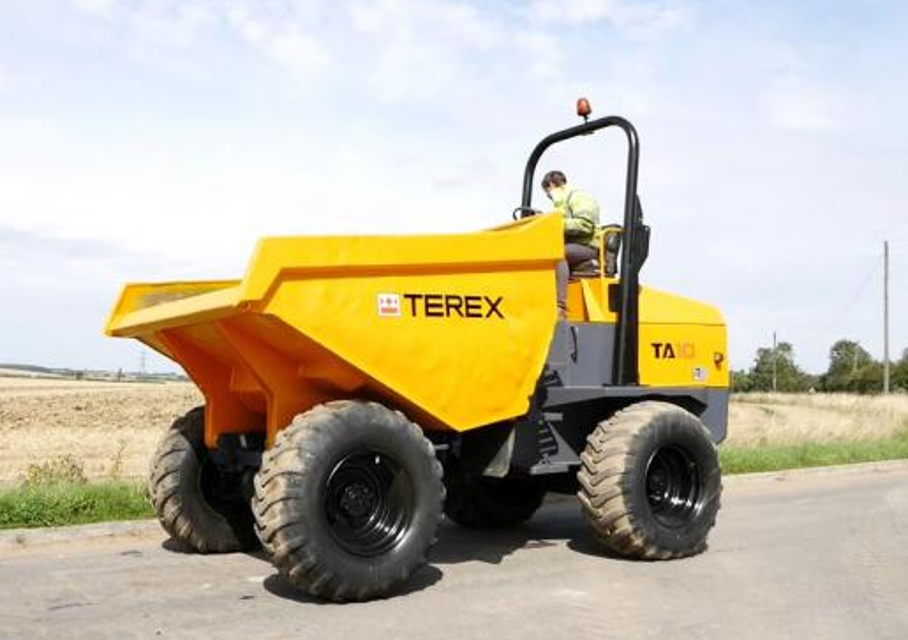

Terex Site Dumper TA10

During ANY maintenance extreme care must be taken to make sure the cleanliness of the hydraulic circuit is maintained. By observing strict hydraulic cleanliness the machine will benefit from fewer hydraulic failures through contamination.

• Always thoroughly clean machine before any hydraulic maintenance. Use paper roll, not rag, to wipe parts.

• Always use fresh, clean hydraulic oil from a sealed container.

• Always make sure old gasket particles and excess sealing compound etc. do not enter the system. If they do clean them out.

• Never use dirty containers for oil storage.

• Never use dirty containers or funnels for filling hydraulic system.

A description of the hydraulics is contained in section 4 of this manual. Hydraulic diagrams will be found in Appendix 2.

A filler/dipstick is provided on top of the tank - Refer to Figure 9.11.

(1) To Check the Hydraulic Oil Level

Breathers, Front & Rear Axles - Clean

Centre Pivot Lock Screws - Check Tightness

Sign off on the 250 Hourly Site Dumper Maintenance

Perform 10, 50 & 250 Hour Checks

Cooling System Supplemental Coolant Additive - Test

Cyclone Air Cleaner Elements - Clean/Replace

Engine Oil - Change (every 250 if sulphur content exceeds 15ppm)

Engine Oil Filter - Change (every 250 if sulphur content exceeds 15ppm)

Fuel System Primary Filter - Replace

The oil level is checked using the dip stick - Figure 9.? refers. The engine oil level must always be between the MIN and MAX on the dip stick. If the engine is warm switch OFF and leave for 5 Minutes before checking levels.

WARNING: NEVER check the oil level or add oil with the engine running. Be careful of hot lubricating oil. Danger of scalding.

NOTICE: Low lubricating oil level can damage the engine. Over filling with oil can damage the engine.

(1) To Check the Engine Oil Level

Refer to Figure 9.6 The machine must be on firm, level ground when checking levels.

1. Pull out the dipstick and wipe off with a lint free cloth or paper.

2. Re-insert the dipstick as far as it will go.

3. Extract the dipstick and read off the level

4. Add oil of the correct specification if necessary.

DANGER: Failure to fit the articulation lock could cause a pinch point or trap that will result in death or serious injury.

Articulation lock fitted before work?

Grip clip and pin removed from the bar in its storage position?

Lock bar pivoted round until it lines up with the holes in the chassis?

Pin refitted and secured with the grip clip?

Sign off on the articulation lock maintenance
