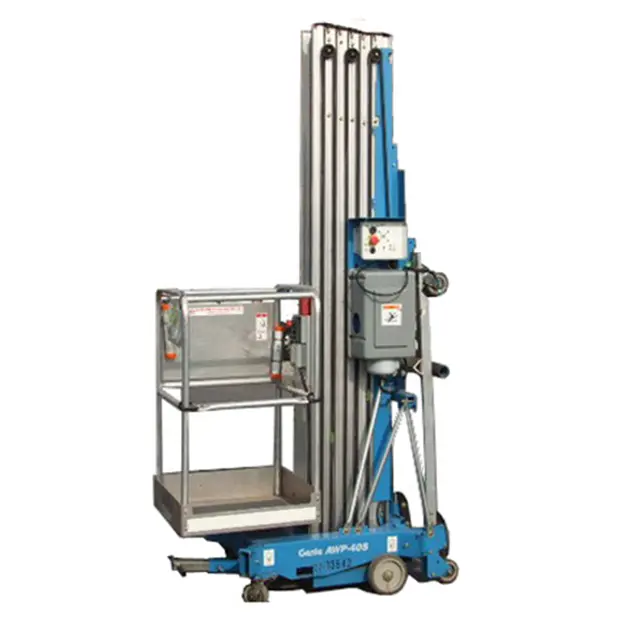

Genie Lift Mast AWP-40S

Open the battery pack lid to access the battery.

Check the battery acid level. If necessary, add only enough distilled water to cover the plates.

Ensure that the DC output cord is properly connected to the battery. Black to negative, red to positive.

Connect the battery charger to a grounded AC circuit.

The charger will turn off automatically when the battery is fully charged.

Check the battery acid level when the charge cycle is complete. Replenish with distilled water to the bottom of the fill tube.

Remove the battery vent caps and permanently remove the plastic seal from the battery vent openings.

Fill each cell with battery acid (electrolyte) until the level is sufficient to cover the plates.

Position the machine on a firm surface directly below the desired work area

Connect to the appropriate power source

Insert the key and turn to platform control

Pull out the red Emergency Stop button to the on position at the ground controls

Twist to release the red Emergency Stop button at the platform controls

Select an outrigger and slide it into a base socket until the outrigger lock pin snaps into place. Adjust the outrigger to level the machine and raise the base casters slightly off the ground. Level the machine using only the outriggers

Check the interlock display lights at the ground controls. Confirm that the corresponding light is on

Use the bubble level and adjust the leveling jacks until the machine base is level

Warning: Maintaining the proper oil level in the lubricator canister is essential to safe operation and good machine performance.

Measure the oil level in the lubricator canister (in mm)

The oil level must be within 12.7 mm from the top of the lubricator canister.

Is the oil level within the required range?

To add oil, remove the oil lubricator canister from the lubricator base and fill with oil.

Did you add oil to the lubricator canister?

Install the canister back onto the lubricator base.

Sign off on the oil level check

Warning: Improperly inflated tires can affect machine handling.

Enter the air pressure in the front left tire

Enter the air pressure in the front right tire

Enter the air pressure in the rear left tire

Enter the air pressure in the rear right tire

All tires have proper air pressure?

Sign off on the tire pressure check

Check the air filter/regulator canister for any water accumulation

Is water visible in the canister?

If water is visible, proceed to the next step. If not, the procedure is complete.

Loosen the drain plug at the bottom of the canister and allow the water to drain out

Sign off on the air filter/regulator canister check
