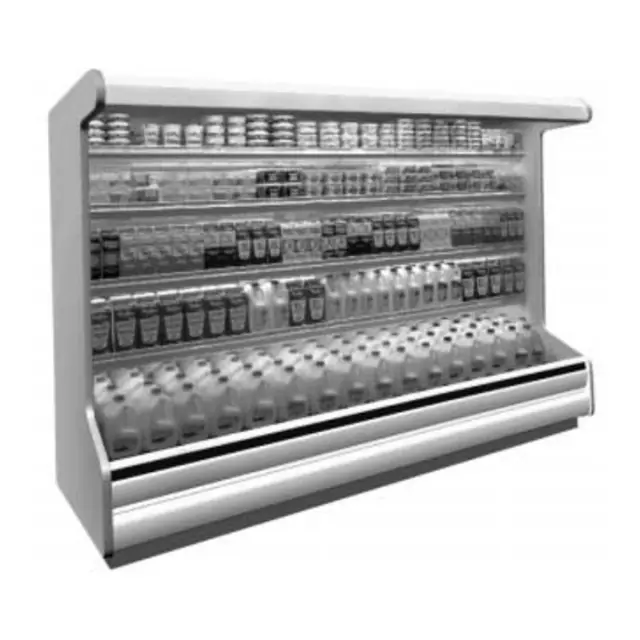

Tyler Refrigeration High Performance Multi-Shelf Merchandiser N6DHPMR 12

Unplug the light cord from the socket in the rear duct panel

Insert socket cover in the light socket to protect the receptacle

Push shelves back and lift up and out to remove them from the shelf brackets

Remove shelf brackets from slots in rear uprights

Clean shelves and shelf brackets

Replace shelves and shelf brackets in reverse order

Remove product from bottom of case

Grasp and lift out each of the bottom trays from the case interior

Remove front kickplate and raceway cover

Remove color band, bumper and bumper retainer from the case

Remove screws for top and bottom of front cladding and remove cladding

Replace front cladding and remaining front components in reverse order

Loosen screws securing rear retainer plate

Slide rear retainer plate back until the honeycomb grid sections can be removed from the top duct

After cleaning, replace honeycomb grid sections as they were removed and secure with the rear retainer plate and screws

Remove shelves and bottom trays

Remove mounting screws and rear duct panels from case

Replace and secure rear duct panels in reverse order after cleaning

Remove shelves and bottom trays

Remove screw above top shelf socket for cases with 5 rows of lighted shelves

Push socket assembly back through the hole in the rear duct panel

Remove mounting screws from rear duct panel
