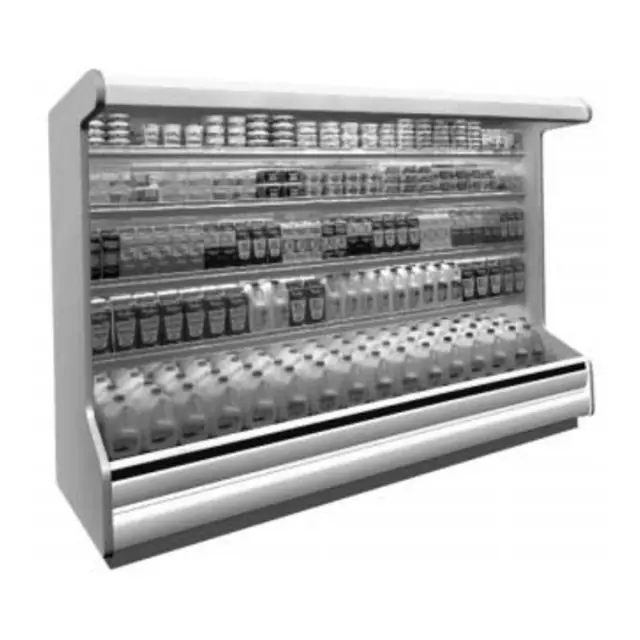

Tyler Refrigeration High Performance Multi-Shelf Merchandiser N6DHPH 8

Remove front kickplate and raceway cover

Remove color band, bumper, and bumper retainer from the case

Remove screws for top and bottom of front cladding and remove cladding

Replace front cladding and remaining front components in reverse order

Loosen screws securing rear retainer plate

Note position of the honeycomb grid during removal

Slide rear retainer plate back until the honeycomb grid sections can be removed from the top duct

Replace honeycomb grid sections as they were removed

Secure honeycomb grid sections with the rear retainer plate and screws

Describe any issues encountered during the procedure

Remove shelves and bottom trays

Remove mounting screws and rear duct panels from case

Replace and secure rear duct panels in reverse order after cleaning

Remove shelves and bottom trays

Remove screw above top shelf socket for cases with 5 rows of lighted shelves

Push socket assembly back through the hole in the rear duct panel

Remove mounting screws from rear duct panel

If shelf has a light, unplug the light cord from the socket in the rear duct panel

Completely insert socket cover in the light socket to protect the receptacle

Push shelves back and then lift up and out to remove them from the shelf brackets

Remove shelf brackets from slots in rear uprights

Replace shelves and brackets in reverse order after cleaning

Lift out front air duct sections

Clean the front air duct sections thoroughly

Replace front air duct sections in reverse order
