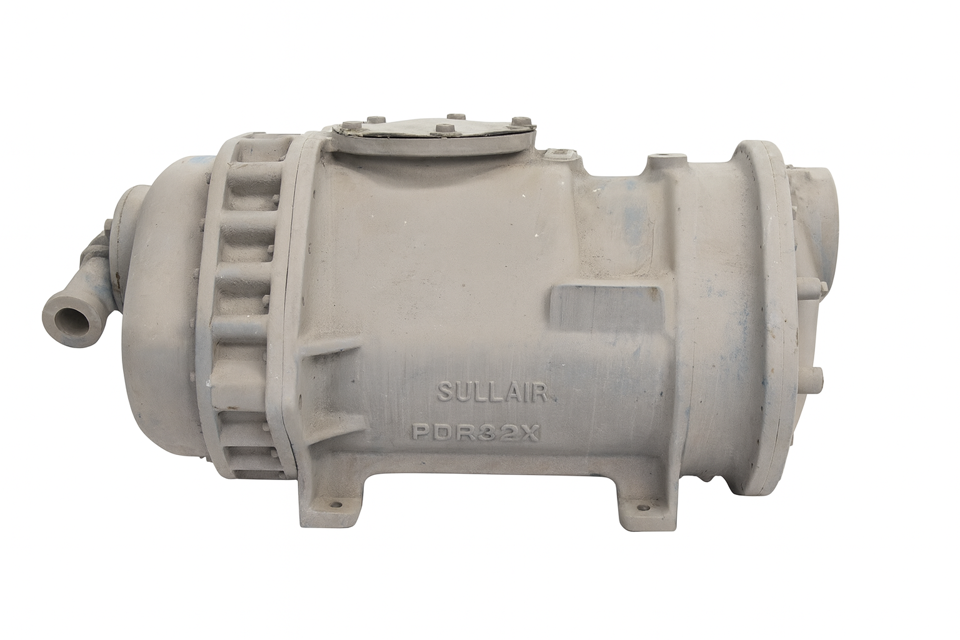

Sullair Compressor PDR32X

Maintenance indicator shows a red signal?

Clean exterior of air filter housing.

Air filter cover removed by loosening wing nuts securing the cover?

Element removed and interior of the housing cleaned using a damp cloth?

Do not blow dirt out with compressed air.

Reassembled in the reverse order of the disassembly?

Sign off on the air filter replacement

The air filter element is cleanable by one of two methods. One method is by washing with a mild household detergent and water.

The other method is cleaning with compressed air. The maximum amount of times that an element should be cleaned is six (6) times; however, the element should be used no longer than a period of one ( 1) year without changing.

Prior to cleaning an element, check the element for damage.

Damaged elements are to be replaced.

When cleaning an element, never exceed the recommended maximum pressures for water (40 PSI) or compressed air (30 PSI).

Do not strike the element against any hard surface to dislodge dust. This will damage the sealing surfaces and possibly rupture the element.

Never "blow" dirt out of the interior of the filter housing. This may introduce dust downstream of the filter. Instead, use a clean damp cloth.

Method 1: Cleaning the Element by Washing. When washing the element, never use petroleum solutions or solvents. Also, never immerse a dirty element in water or cleaning solution.

Warning: Ensure the machine is turned off and disconnected from power source before performing any maintenance tasks.

Clean compressor unit bearing and shaft seal orifices

Sign off on the 50 hourly compressor maintenance

Warning: This procedure requires trained personnel with PPE!

Is the coupling aligned properly?

If coupling is not aligned properly, refer to the maintenance section of the manual

Coupling passed the post-alignment test?

Sign off on the coupling alignment check

Replace your separator element when the separator maintenance indicator shows a red signal. The separator element must be replaced. Do not clean the dirty element.

When the separator maintenance shows a red signal, separator replacement is necessary. Use primary separator replacement kit number 11173. Follow the procedure explained below for separator replacement.

1. Remove all piping connected to the sump cover to allow removal (return line, service line, etc.).

2. Remove cover bolts and lift cover from sump.

4. Scrape old gasket material from cover and flange on sump.

7. Inspect secondary separator element and replace if necessary (see Secondary Separator Replacement).
